The Bold BI dashboard designer supports connecting the Amazon MWS web services using the REST API.
To configure the Amazon MWS data source, follow these steps:
Click the Data Sources button in the configuration panel to add a new data connection.
Click CREATE NEW to launch a new connection from the connection panel.
Select the Amazon MWS connection in the connection panel.
NOTE: You can also create a data source from the home page by clicking the Data Sources menu from the left menu panel and Create Data Source from the data sources page.

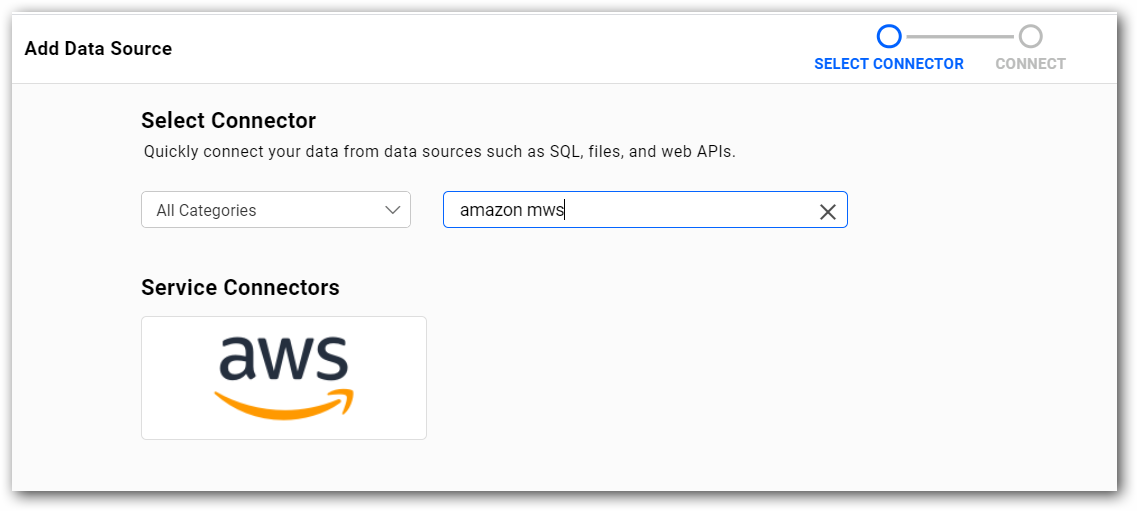

![Choose data source from server](/assets/cloud/working-with-datasource/data-connectors/images/AmazonMWS/ChooseDS_server.png)
You can also edit the connection information set here using the Edit Connection option.
Once you click the data source, the NEW DATA SOURCE configuration panel opens. Follow these steps to create an Amazon MWS data source.
Enter a name and description (optional) for the data source.
Choose the region for your account accessing the market place.
Select the operation for depends upon your data needs and also, you can use the custom url for the datasource connection
Example Custom Order API:
Select the POST method for the REST API in the Method combo box.
In Max Rows, enter the maximum number of rows to be fetched from the Amazon MWS data source. This value is used to fetch the data from the Amazon MWS data source using the pagination.
Choose a time interval for Refresh Settings using the combo box, to trigger the Rest API request periodically to keep the data in sync with your dashboard.
Select the XML data type in the Data Format combo box.
Enter a valid SellerID,MWSAuthToken,AWS accesskeyId, and SecretKey to access the endpoint in your account.
Open Scratch pad URL - https://mws.amazonservices.ca/scratchpad/index.html
Select the API Section, Operation, and provide authentication values.
Once you submit the request, click Request Details from the response page.
|Max Rows||Most of the REST APIs return only fewer data on a single API request. To pull the amount of data you need, set a value in this field. Pagination is handled internally and will fetch the amount of data you need.|
|Refresh Settings||Period of time before next refresh call is triggered. This will automatically trigger a call for the API configured in the data source to keep the data up to date. If you do not want to sync your new data, choose ‘Never’.|
Orders API have to enter the CreateAfter and MarketplaceId parameters in header.
MatchingProducts API have to enter marketplaceId and Query parameters in header.
You can prepare a custom URL using the [Amazon Scratchpad][https://docs.developer.amazonservices.com/en_uk/scratchpad/scratchpad_using.html](https://docs.developer.amazonservices.com/enUK/scratchpad/ScratchpadUsing.html)
Click Preview & Connect to connect with the configurations set.
The Choose Schema(s) dialog opens. The schema represents the key fields of JSON data retrieved from the Amazon MWS Rest API request. This dialog displays a list of schemas in the treeview and its corresponding values in the grid for preview. Select required schema(s) from the treeview to use in designer and click Connect.
Now, the data design view page with the selected table schema opens. Drag and drop the table.
Click Save to save the data source with a relevant name.
