Connecting Bold BI to InfluxDB data source

The Bold BI Dashboard Designer supports connecting InfluxDB database using SQL Live Query (C# API).

Supported Server Version: InfluxDB v1.8

Choose InfluxDB data source

To configure the InfluxDB data source, follow these steps:

  1. Click Data Sources in the configuration panel to add a new data connection.

    Data source icon

  2. Click CREATE NEW to launch a new connection from the connection panel.

  3. Select the InfluxDB connection in the connection panel.

    Choose data source

NOTE: You can also create a data source from the home page by clicking the Data Sources menu from left menu panel and Create Data Source from the data sources page.

Choose data source from server

Connect to InfluxDB

Create InfluxDB data source

After clicking the data source, the NEW DATA SOURCE configuration panel opens. Follow the given steps to create an InfluxDB data source:

  1. Enter a name and description (optional) for the data source.

  2. Enter a valid InfluxDB server or host name in the ServerName text box.

  3. Enter the port, in which the server is running in the Port text box.

  4. Choose None or Server Authentication in the Authentication Mechanism combo box.

  5. Enter a valid InfluxDB username and password, if you choose a Server Authentication Mechanism

  6. Select a database that you want to query in the listed database associated with the given InfluxDB server in the database combo box.

    InfluxDB Connection

Data Preview

  1. Click Connect to connect the InfluxDB server with configured details.

The schema represents the collection list retrieved from the InfluxDB server. This dialog displays a list of schemas in a tree view and their corresponding values. Measurements will be listed as tables.

Treeview schema

  1. Now, the data design view page with the selected table schema opens. Drag the table.

    Query designer

    You can use the Code View option for passing a query to display data.

    Codeview mode

  2. Click Save to save the data source with a relevant name.

NOTE: In future, you can edit the connection information using the Edit Connection option.

Here is the Bold BI supported features in InfluxDB connector

IMPORTANT: InfluxDB is a time series database, so few limitations for InfluxDB connector in Bold BI live mode connection.

NOTE: Joins are not supported for InfluxDB data source in Bold BI.

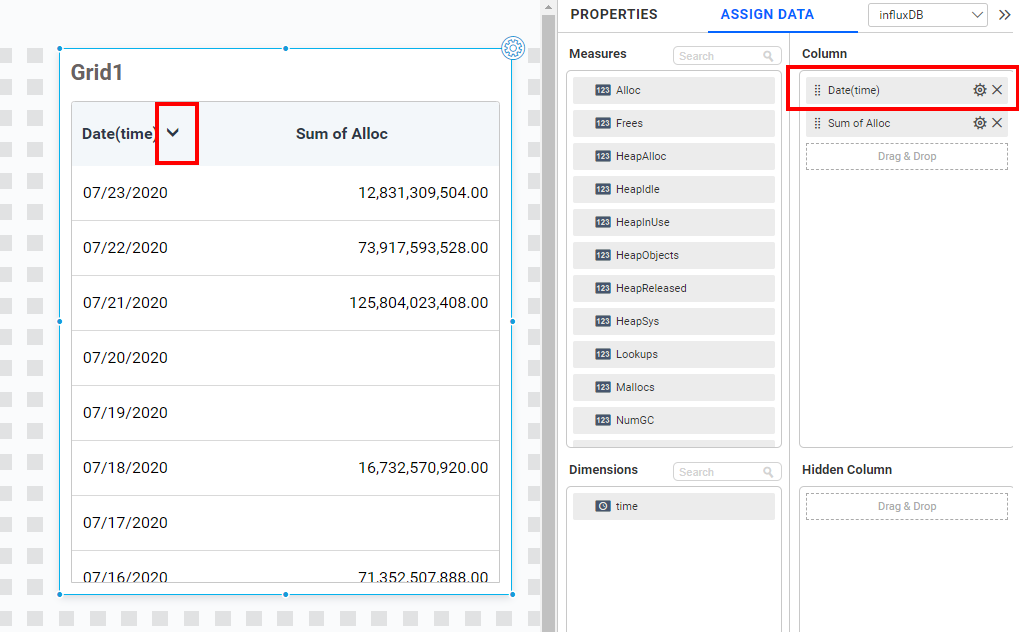

Group by and Order by

InfluxDB is a time series database. The data can be ordered only by using the time column and can be grouped only by time intervals.

InfluxDB Group by

Expressions

Expressions can be created for numeric field(s) and calculated field(s) in the selected table.

Supported functions

Function type Function name
Numbers ABS, ACOS, ASIN, ATAN, COS, COT, DEGREES, EXP, LOG, PI, POWER, RADIANS, ROUND, SIN, SQRT, TAN
Aggregation AVG, COUNT, COUNTD, MAX, MIN, STDEV, SUM
Logical NOT
Row RUNNINGCOUNT, RUNNINGAVG RUNNINGMAX, RUNNINGMIN, RUNNINGSUM

InfluxDB Expressions

Filters

You can only filter numeric columns in the query filters in query designer page.

InfluxDB Filters

InfluxDB Filters1

Widget level filtering

You can filter data based on year, month, week, day, and hour for time column only using the Relative Date Filtering.

InfluxDB WidgetLevelFiltering

Relative date filtering

NOTE: You cannot filter measure columns in the widget level filtering.

Top N filters

The data can be applied in the top and bottom filters for time column based on the measure fields in the selected list.

InfluxDB Top N

(Time column has been filtered top 5 values based on Sum of Alloc)

Connecting Bold BI to InfluxDB Data Source via REST API

Prerequisites

Supported Server Version: InfluxDB v1.8

Type while creating the data source needs to be influxdb.

Rest API - v4.0

Parameters for creating Data Source

Parameters Details
Servername

required 		`string`

Server name or Host name of the connection
Port

required 		`string`

Port number used to connect to InfluxDB
AuthenticationType

optional 		`string`

None or Server Authentication. By default, it is None.
Username

optional 		`string`

A valid username for the connection. Required for Server Authentication.
Password

optional 		`string`

A valid Password for the connection. Required for Server Authentication.
Database

required 		`string`

database which needs to be connected
Schemaname

required for table mode 		`string`

Enter a valid Schemaname
Tablename

required for table mode 		`string`

Enter a valid Tablename
Query

required for code view mode 		`string`

Enter a valid Query
AdvancedSettings

optional 		`string`

Additional optional connection parameters can be provided. By default, it is empty.
CommandTimeout

optional 		`string`

Enter a valid Timeout for connection. By default, it is 300
IsSshConnection

optional 		`boolean`

Enable or disable SSH. By default, it is false.
SshServerName

optional 		`string`

Enter a valid Ssh Server name. By default, it is empty.
SshPort

optional 		`integer`

Enter a valid Ssh Port number.
SshUserName

optional 		`string`

Enter a valid Ssh Username. By default, it is empty.
SshPassword

optional 		`string`

Enter a valid Ssh Password. By default, it is empty.
Expressions

optional

`Array of Objects`

Parameters for adding expressions when creating Data Source

Parameters Details
Name

required

`string`

Name of the Expression
Expression



required

`string`

Expression


Parameters for editing Data Source

NOTE: For editing Data Source via API. All the parameters are optional. The parameter which needs to be changed can be provided.

Parameters for modifying expressions when editing Data Source

Parameters Details
Name

required

`string`

Name of the Expression
Expression



required

`string`

Expression


Action



optional

`string`

add/delete/edit

By default, it is add.
NewName

optional

`string`

For renaming the expression. This is applicable only if the Action is edit

Connection Sample for Table Mode

For creating connection:

"Connection":
{
"Servername": "string",
"Port": "string",
"AuthenticationType": "string",
"Username": "string",
"Password": "string",
"Database": "string",
"Schemaname": "string",
"Tablename": "string",
"AdvancedSettings": "string",
"CommandTimeout": "string",
"IsSshConnection": "false",
"SshServerName": "string",
"SshPort": 0,
"SshUsername": "string",
"SshPassword": "string",
"Expressions" : [{
"Name": "Expression1",
"Expression" : "SUM(numeric expression)"
    },
    {
"Name": "Expression2",
"Expression" :  "UPPER(string expression)"
}]
}

For editing connection:

"Connection":
{
"Servername": "string",
"Port": "string",
"AuthenticationType": "string",
"Username": "string",
"Password": "string",
"Database": "string",
"Schemaname": "string",
"Tablename": "string",
"AdvancedSettings": "string",
"CommandTimeout": "string",
"IsSshConnection": "false",
"SshServerName": "string",
"SshPort": 0,
"SshUsername": "string",
"SshPassword": "string",
"Expressions" : [{
"Name": "Expression1",
"Expression" : "SUM(numeric expression)",
"NewName" : "Sum",
"Action": "edit"
    },
    {
"Name": "Expression2",
"Expression" :  "UPPER(string expression)"
"Action": "delete"
}]
}

Connection Sample for Code View Mode

"Connection":
{
"Servername": "string",
"Port": "string",
"AuthenticationType": "string",
"Username": "string",
"Password": "string",
"Database": "string",
"Query": "string",
"AdvancedSettings": "string",
"CommandTimeout": "string",
"IsSshConnection": "false",
"SshServerName": "string",
"SshPort": 0,
"SshUsername": "string",
"SshPassword": "string",
"Expressions" : [{
"Name": "Expression1",
"Expression" : "SUM(numeric expression)"
    },
    {
"Name": "Expression2",
"Expression" :  "UPPER(string expression)"
}]
}
