Stacked Area Chart

Stacked Area Chart allows you to compare multiple measures through filled curves stacked one after the other vertically.

Stacked Area Chart

How to configure the table data to stacked area chart?

Stacked Area Chart need a minimum of 1 value element and 1 column element to showcase. The measure or expression field that you would like to analyze can be dropped into Y Values block. The dimension that you would like to categorize the measure, can be dropped onto Columns block. If you would like to categorize based on a series, then the respective dimension can be dropped onto Rows block in addition.

The following steps explains how to configure data to stacked area chart:

  1. Drag and drop the stacked area chart into a canvas and resize it to your required size.

Drag and drop the stacked area chart

  1. Click the Data Source button in the configuration panel.

Data Source

  1. Click the CREATE NEW button to launch a new connection from the connection type panel.

Launch a new connection

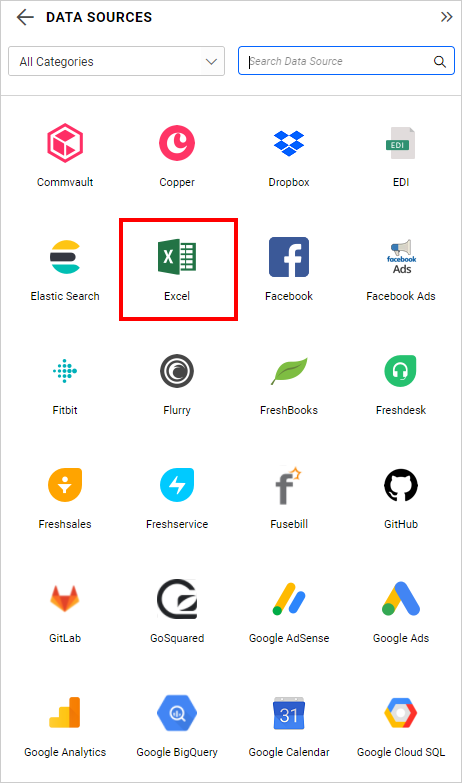

  1. In the connection type panel, click any one (Here, the Microsoft SQL Connection type is selected for demonstration) of the listed connection type button shown.

Listed connection type button

  1. In the NEW DATA SOURCE configuration panel, fill the connection type and related details. Click the Connect button.

Connect

  1. Drag your preferred table or view from the left pane from the data design view, click the Save button.

Virtual table

  1. Click the Properties button in the configuration panel, property pane opens. Now, switch to the ASSIGN DATA tab.

ASSIGN DATA

Stacked area assigndata

  1. The data tab will be opened with the available measures and dimensions from the connected data source.

Data tab

  1. You can add the required data from the Measures and Dimensions into the required field.

Adding Value(s)

You can add more than one Measures into Y Values field by drag and drop the required measure.

Add more than one Measures

Click the Settings option to change the name by using the Rename option and required summary type from the available summary types shown in Settings.

Settings

Filtering data

You can filter the data to be displayed in funnel chart by using filter. For more details, refer to thefilter.

Configuring widget filters

Formatting data

You can format the data to be displayed in the chart by using format option. For more details, refer to themeasure format

Formatting measure type column

To remove the added value fields click highlighted button.

Remove the added value

You can add more than one column from Dimensions field into Value(s) field.

Adding Columns

You can add more than one value into Columns field.

Add more than one column

Stacked area chart will be rendered like this

Stacked area chart

You can change the Settings.

Settings

Renaming fields

The configured field names can be edited by using the Rename option provided in the settings menu.

Sorting data

You can Sort the dimension data using Sort option under Settings menu list. To apply sorting for the data, refer to theSort.

Sort and Settings

Filtering data

You can apply filters by selecting filters option in settings. For more details, refer to thefilter.

Configuring filter for dimension column

To show all records click on Show All Records.

Similarly you can add the Measures and Expression Columns into column field.

Multi-Level Drill Down

Add more than one value to the Columns field, an alert message will be shown. Click Yes to enable the option.

NOTE: If you click No, a single value will be added to the Columns field.

Drill alert

The drilled view of the chart region is selected.

Drilled view

Adding Rows

You can drag and drop the Dimension into the Rows field.

Adding Rows

You can apply filter and sort option for the rows field, if required.

This will render stacked area chart in series.

Render stacked area chart

How to format stacked area chart?

You can format the stacked area chart for better illustration of the view that you require, through the settings available in Properties tab.

To configure data into stacked area chart follow the steps

  1. Drag and drop the stacked area chart into canvas and resize it to your required size.

  2. Configure the data into stacked area chart.

  3. Focus on the stacked area chart and click on widget settings.

Format stacked area chart

The property window will be opened.

Property window

You can see the list of properties available for the widget with default value.

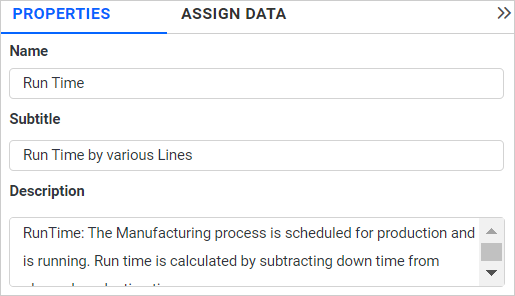

General Settings

General Settings

Name

This allows you to change the title for this stacked area chart widget.

Subtitle

Allows you to provide the subtitle for this stacked area chart widget.

Description

Allows you to provide the description about this stacked area chart widget.

Basic Settings

Basic Settings

Chart Type and axis

Click the Change button to open the Chart Type and Axis Settings dialog.

Chart Type

Chart Type: This allows you to switch the widget view from the current chart type to another chart type.

Secondary Axis: By default, the configured field is plotted as the primary axis if you enable this option, the selected field will be plotted as the secondary axis.

Enable Animation

It animates the measure values when you toggle the Enable Animation.

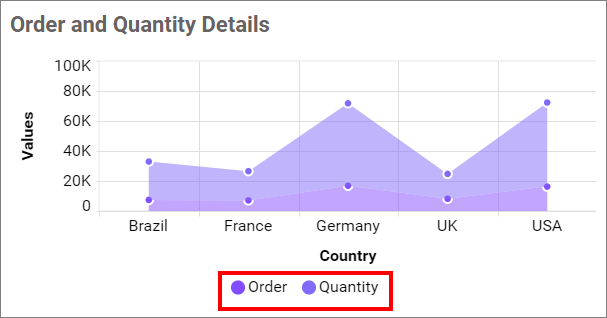

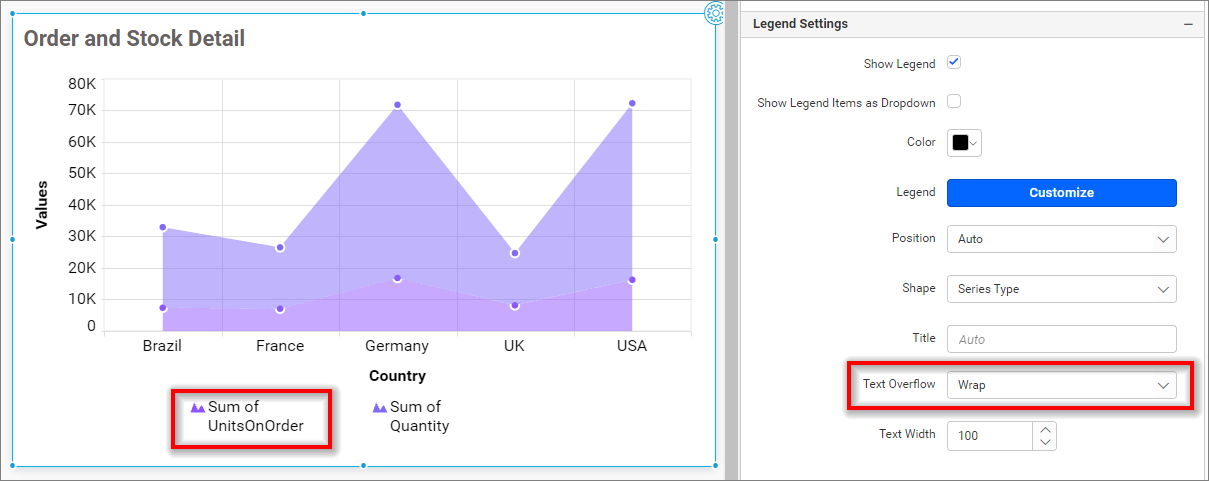

Show Legend

A Legend is a text used to describe the data plotted. This allows you to toggle the visibility of legend in chart and also change the legend text position (selecting through combo box).

Show Legend

Enabling this option of Custom Legend Text will allow you to define a custom text (through the text area) to display for each legend series (selecting through the combo box) in chart.

Legend Label Color

This allows you to change the chart legend title and label colors.

Chart Legend Color Option

Chart Legend Color

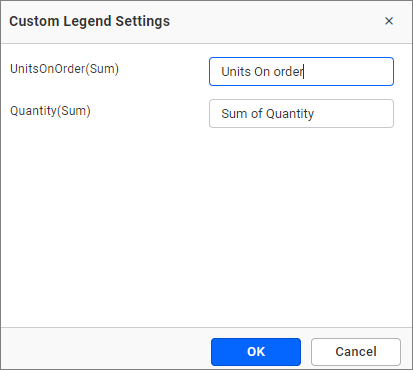

Customize

You can customize the legend text through the Custom Legend Settings dialog. This dialog will show the legend text list as labels at left and corresponding text area at right to add the formatted text to display instead.

Legend customization

Legend customization Change

Custom Legend Settings when giving Row Section

You can customize the legend text using the Custom Legend Settings dialog. This dialog will show the legend text list as labels at left and corresponding text area at right to add the formatted text to display instead. When a column is added into Row section, this dialog will show two options Individual and Group at top in addition, to toggle between.

Individual

Legend customization For Row

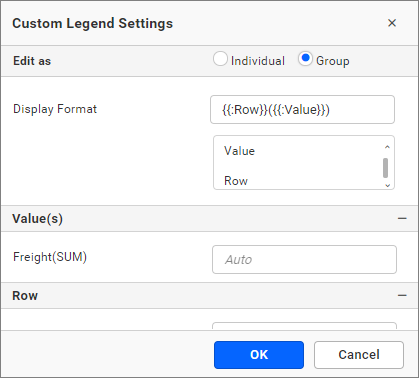

Group

{{ : Row }} ({{ : Y Value }})

Legend customization For Row

Legend Position

A Legend is a text used to describe the data plotted. This option allows you to place the legend at the position of Left, Right, Top, and Bottom.

Legend Shape

This allows you change the shape of the legend.

Circle

This option allows you to change the shape of the legend in a Circle.

Show Legend shape

Series Type

This option allows you to change the shape of the legend in a Series.

Show Legend shape Series

Legend Title

This allows you to add the legend title for the chart. It will reflect with the Show Legend.

Show Legend Title

Show Value Labels

This allows you to toggle the visibility of value labels.

Show Value Labels

Customize

You can able to customize the visibility of the Value Label.

Show Value Labels Customize

Show Value Labels

Value Label Color

This allows you to customize value label’s color.

Value label Color Option

Value label Color

Value Label Rotation

This allows you to define the rotation angle for the value labels to display.

Value Label Rotation

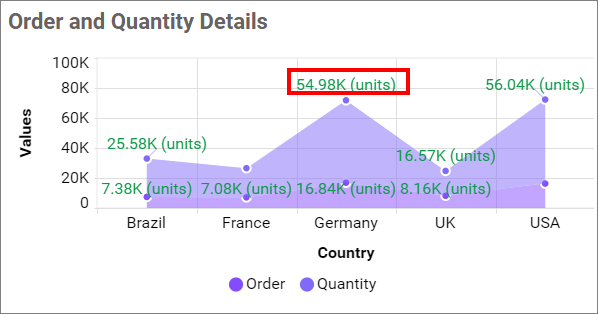

Value Label Suffix

Allows you to enable the Suffix value text to the value labels.

Suffix Value

Allows you to set\edit suffix value to the value labels.

Suffix Value

Show Marker

This allows you to toggle the visibility of marker from label to adorn each data point in chart series.

Show Marker

Show Items With No Data

This allows you to show the data which column does not have value.

Empty Point Mode Gap

Enable Smooth Scroll

On enabling this support, the chart scroll bar thumb-size will be calculated based on the total records count. So, you can see the last record by performing a single scroll.

Link

You can enable linking and configure to navigate to a general URL with or without parameters. For more details, refer to theLinking.

Axis Settings

Axis Settings

This section allows you to customize the axis settings in chart.

Title color

This allows you to customize the axis title color.

Label color

This allows you to customize the axis label color.

Show Category Axis

This allows you to enable the visibility of Category Axis.

Show Category Axis

Show Category Axis Title

This allows you to enable the visibility of Category Axis title.

Show Category Axis Title

Category Axis Title

This allows you to edit the Category Axis title for chart. It will reflect in x-axis name of chart.

Category Axis Title

Label overflow mode

This allows you to handle the display mode of the overlapping labels in the Category Axis.

Trim

This option trims the end of overlapping label in the axis.

Label overflow mode trim

Hide

This option hides the overlapping label in the axis.

Label overflow mode hide

Trim Axis Labels

This option allows you to trim the axis labels based on the Maximum Label Width property value.

Trimmed label

Label Maximum Width

This option allows you to set a maximum width for the axis labels, and also it can be made customizable when the trim axis label option is enabled.

Label maximum width

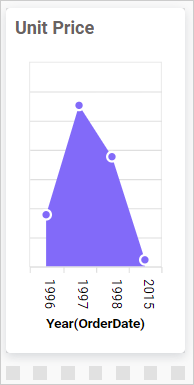

Category Axis Label Rotation

This allows you to define the rotation angle for the category axis labels to display.

Category Axis Label Rotation

Show Primary Value Axis

This allows you to enable the Primary Value Axis for chart.

Show Primary Value Axis

Show Primary Value Axis Title

This allows you to enable the visibility of Primary Value Axis title of chart.

Show Primary Value Axis Title

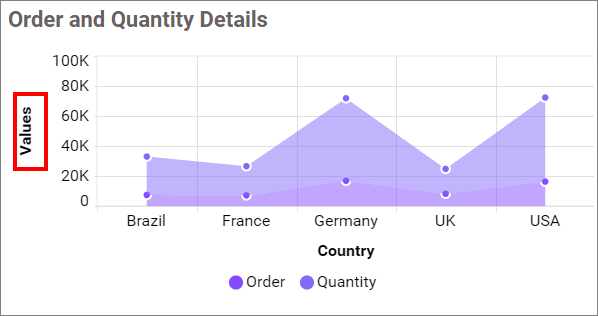

Primary Value Axis Title

This allows you to edit the Primary Value Axis title. It will reflect in y-axis name of chart.

Primary Value Axis Title

Axis Range Settings

This allows you to manually set the Minimum, Maximum, and Interval values of primary value axis through the Axis Range Settings dialog.

Axis Range Settings

It will reflect in the primary value axis of chart.

Axis Range Output

Grid Line

Grid Line

Primary value Axis

This allows you to enable the Primary Value Axis gridlines for the stacked area chart.

Primary value Axis

Category Axis**

This allows you to enable the Category axis gridlines for the stacked area chart.

Category Axis

Secondary value Axis

This allows you to enable the Secondary Value Axis gridlines for the Combination chart.

Secondary value Axis

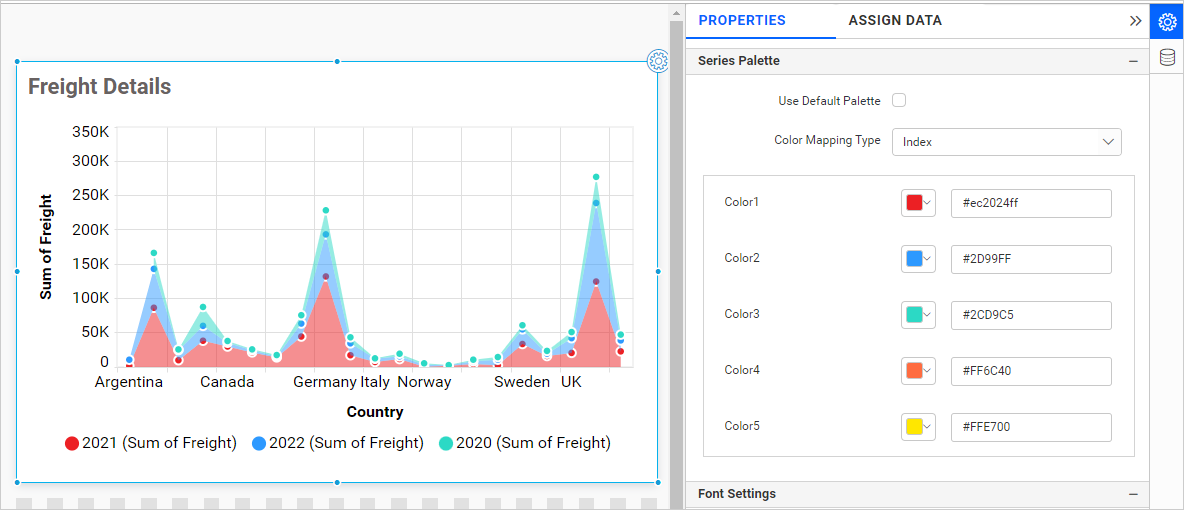

Formatting

This allows you to change the color for the stacked area chart.

Format Colors

It will reflect in the stacked area chart.

Formating Data Colors

Filter

Filter

Act as Master Widget

This allows you to define this 100% stacked area chart widget as a master widget such that its filter action can be made to listen by other widgets in the dashboard.

Ignore Filter Actions

This allows you to define this 100% stacked area chart widget to ignore responding to the filter actions applied on other widgets in dashboard.

Hierarchical Filter

Through this option, you can enable/disable the hierarchical top N filtering. While applying the Top N filter with multiple dimension columns, the data returned can be customized based on whether the filtering need to be done as flat or based on the hierarchy of dimension columns added.

When the Hierarchical Filter option is enabled, the Top N will be applied for each individual column separately based on the number set for each column.

Container Appearance

Container Appearance

Title Alignment

This allows you to handle the alignment of widget title to either left, center, or right.

Title Color

This allows you to apply the text color to the widget title.

Title Auto Font Size

On enabling Auto Font Size, the font size of the title will be adjusted automatically if the resolution of the screen varies.

Font Size

This allows you to apply the specified size of the font to the widget title if the Title Auto Font Size is disabled. Value can be between 10 and 44.

Subtitle Auto Font Size

On enabling Auto Font Size, the font size of the subtitle will be adjusted automatically if the resolution of the screen varies.

Font Size

This allows you to apply the specified size of the font to the widget title if the Subtitle Auto Font Size is disabled. Value can be between 10 and 32.

Show Border

This allows you to toggle the visibility of border surrounding the widget.

Corner Radius

This allows you to apply the specified radius to the widget corners if the Show Border is enabled. Value can be between 0 and 10.

Show Background Image

This allow you to set the background image for the stacked area chart widget.

Background Color

This allows you to set the background color to the stacked area chart widget.

Transparency

This property allows you to specify the transparency for the background color.

Container actions

Container Actions

Show Header

This allows you to enable or disable the widget title of the stacked area chart.

Allow Maximize View

This allows you to enable or disable the maximized mode of the stacked area chart widget. The visibility of the maximize icon in the widget header will be defined based on the setting in the viewer.

Allow CSV Export

This allows you to enable or disable the CSV export option for the stacked area chart widget. Enabling this allows you to export the summarized data of the widget view to CSV format in the viewer.

Allow Excel Export

This allows you to enable or disable the Excel export option for the stacked area chart widget. Enabling this allows you to export the summarized data of the widget view to (.xlsx or .xls) format in the viewer.

Allow Image Export

This allows you to enable or disable the Image export option for the stacked area chart widget. Enabling this allows you to export the view of the widget to image format (.jpg), (.png), or (.bmp) in the viewer.

Allow PDF Export

This allows you to enable or disable the PDF export option for the stacked area chart widget. Enabling this allows you to export the view of the widget to pdf format in the viewer.

Enable Comments

This allows you to enable or disable comment for the dashboard widget. For more details, refer to the link.

Allow View Underlying Data

This allows you to visualize the raw data associated with a widget at runtime.

To learn more about viewing the underlying widget data, refer to theview data documentation.

Pin Widget

This allows you to pin the widget.
