PostgreSQL

PostgreSQL is a free and open-source relational database management system (RDBMS) emphasizing extensibility and SQL compliance.

Connection Properties

In a YAML file, the config section contains the following properties:

Connectorname: PostgreSQL
host: Hostname or IP address of the server
port: Server running port
username: Username
password: Password
database: Database
drivername: postgresql+pg8000

Configure the Bold Data Hub to connect PostgreSQL

  1. Click the Data Hub icon on the Navigation Pane.

PostgreSQL Data Hub- BoldBI

  1. Click Add Project and provide the new project’s name.

PostgreSQL Data Hub- BoldBI

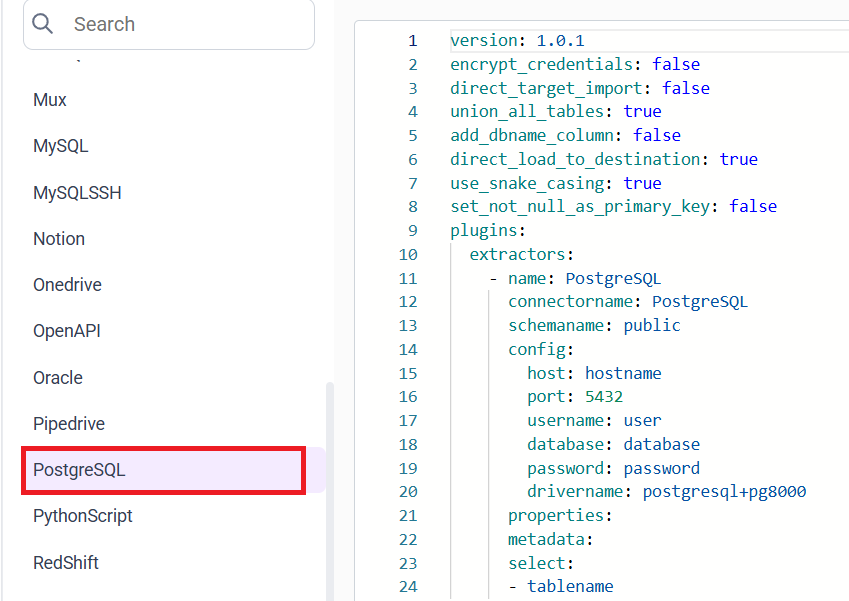

  1. Select the newly created project and add the PostgreSQL template.

PostgreSQL Data Hub- BoldBI

Configuration Parameters

Parameters Description
Host: Specify the hostname of the PostgreSQL server.
Port: Specify the port number of the PostgreSQL server (default is 5432).
Username: Provide the username to authenticate with the PostgreSQL server.
Password: Provide the password to authenticate with the PostgreSQL server.
Database: Specify the name of the PostgreSQL database from which data will be extracted.
Driver Name: Specify the driver name for connecting to PostgreSQL (e.g., postgresql+pg8000).
Select: Tablename(s): Specify the name list to load tables from the PostgreSQL server.
Metadata: (Optional) Replication Method: Specify the replication method for the table(s). Options include FULL or INCREMENTAL.
Replication Key: Specify the replication key for incremental replication. This key helps in identifying new or updated records.
Replication Value: Specify the replication value to start the incremental replication from a particular point.
  1. Update the details required in the template and Click Save, choose the desired destination to save the pipeline.

PostgreSQL Data Hub- BoldBI

  1. Creating a Pipeline in Bold Data Hub automatically creates a Data Source in Bold BI. The Bold BI Data Source is a live data source to the destination database used in Bold Data Hub. For more information on the relationship between Bold Data Hub Pipeline and the associated Data Sources in Bold BI , please refer to Relationship between Bold Data Hub Pipeline and Associated Data Sources in Bold BI

Schedule Bold Data Hub Job

  1. To configure interval-based scheduling, click on the schedules tab and select the created pipeline and click on the schedule icon and configure it.

PostgreSQL - BoldBI

PostgreSQL - BoldBI

  1. For on-demand refresh, click Run Now button.

PostgreSQL - BoldBI.

  1. The Schedule history can be checked using the history option as well as logs.

PostgreSQL - BoldBI

  1. Click on Logs to see if the run is completed and data source is created in Bold BI.

PostgreSQL - BoldBI

  1. Click Edit DataSource Option to view the created tables.

Metadata Properties

In the metadata section, define the mode of data refresh. There are two modes: INCREMENTAL and FULL_TABLE. It only supports DateTime datatype columns.

INCREMENTAL
metadata:
  TableName:
    replication_method: INCREMENTAL
    replication_key: Column name
    replication_value: column value that data starts from
 This mode fetches data from the date column mentioned in the replication key from the start date as mentioned in the replication value. Once it is scheduled, the replication value is updated automatically from the imported data.
FULL_TABLE
metadata:
  TableName:
    replication_method: FULL_TABLE
    replication_key: Column name
    replication_value: column value that data starts from
    interval_type: days/hours/minutes/year/month
    interval_value: integer value to add in the interval type
This mode fetches data from the date column specified in the replication key starting from the date specified in the replication value. Once scheduled, the replication value is updated according to the interval_type and interval_value from the imported data. For example, if the interval_type is set to 'year' and the interval_value is set to '1', the first schedule will fetch records from January 1, 2000 to December 31, 2000. In the next schedule, it will fetch records from January 1, 2001 to December 31, 2001, and so on.

Example Configuration

Incremental

version: 1
encrypt_credentials: false
plugins:
  extractors:
    - name: tap_postgres
      connectorname: PostgreSQL
      config:
        host: <HOSTNAME>
        port: <PORT>
        username: <USERNAME>
        database: <DATABASENAME>
        password: <PASSWORD>
        drivername: postgresql+pg8000
      select:
        - TABLE1
        - TABLE2
      metadata:
        TABLE1:
          replication_method: INCREMENTAL
          replication_key: last_modified_on
          replication_value: 2023-07-19 00:00:00
        TABLE2:
          replication_method: INCREMENTAL
          replication_key: last_modified_on
          replication_value: 2023-07-19 00:00:00

FULLTABLE

version: 1
encrypt_credentials: false
plugins:
  extractors:
    - name: tap_postgres
      connectorname: PostgreSQL
      config:
        host: <HOSTNAME>
        port: <PORT>
        username: <USERNAME>
        database: <DATABASENAME>
        password: <PASSWORD>
        drivername: postgresql+pg8000
      select:
        - TABLE1
        - TABLE2
      metadata:
        TABLE1:
          replication_method: FULL_TABLE
          replication_key: last_modified_on
          replication_value: 2023-07-19 00:00:00
          interval_type: days
          interval_value: 6
        TABLE2:
          replication_method: FULL_TABLE
          replication_key: last_modified_on
          replication_value: 2023-07-19 00:00:00
          interval_type: days
          interval_value: 6
