Embed Token Generation

To embed a Bold BI dashboard securely in your application, you must generate an embed token. In v13.1, the token is requested by building a signed query string and calling the authorize endpoint via GET API call.

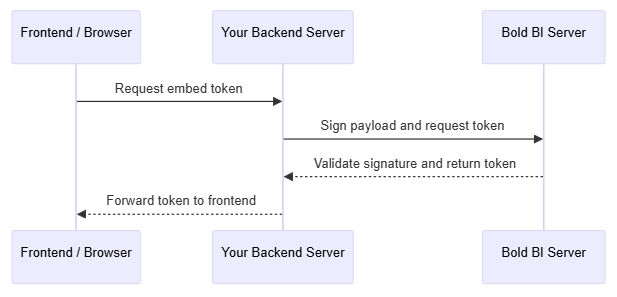

The following diagram illustrates the token generation flow:

Token Generation v13 diagram

Node

/*
  Example: Embed Token Generation (Node.js)
  Requires: express, crypto, https, http
  Install express: npm install express
*/

const express = require('express');
const crypto = require('crypto');
const https = require('https');
const http = require('http');

const app = express();

app.post('/tokenGeneration', function (req, res) {
  // Required details
  const serverUrl = "<Bold BI Server URL>";
  const siteIdentifier = "<Site Identifier>";
  const serverApiUrl = serverUrl + "/api/" + siteIdentifier;
  const dashboardId = "<Dashboard Id>";
  const userEmail = "<User Email>";
  const embedSecret = "<Embed Secret Key>";

  // Build query string
  let queryString = "embed_nonce=" + crypto.randomUUID();
  queryString += "&embed_dashboard_id=" + dashboardId;
  queryString += "&embed_user_email=" + userEmail;

  // Sign query string
  const embedSignature = "&embed_signature=" + getSignatureUrl(queryString, embedSecret);
  const embedDetailsUrl = "/embed/authorize?" + queryString + embedSignature;

  // Request token from Bold BI server
  const serverProtocol = new URL(serverApiUrl).protocol === 'https:' ? https : http;
  serverProtocol.get(serverApiUrl + embedDetailsUrl, function (resultContent) {
    let str = '';
    resultContent.on('data', chunk => { str += chunk; });
    resultContent.on('end', function () {
      const resultJson = JSON.parse(str);
      if (resultJson?.ApiStatus && resultJson.Data?.access_token) {
        res.json({ access_token: resultJson.Data.access_token });
      } else {
        res.status(500).json({ error: "Failed to generate embed token" });
      }
    });
  });
});

// Helper function: Sign query string using embedSecret
function getSignatureUrl(queryString, embedSecret) {
  const hmac = crypto.createHmac('sha256', Buffer.from(embedSecret));
  return hmac.update(queryString).digest('base64');
}

Note: You can reuse the Embed Token generated for dashboard embedding case. Due to a current limitation, Embed Tokens are generated using a dashboardId but are not dashboard-specific; they are user-specific. This limitation will be addressed in a future release.

The following mandatory values must be configured in your backend application to generate an embed token.

Parameter Description
serverUrl Base URL of your Bold BI application (e.g., https://your-company.boldbi.com/bi).
siteIdentifier Unique site/tenant identifier in Bold BI (e.g., site/tenant)
dashboardId Unique ID of the dashboard
How To get: Open the dashboard in BI application and copy the ID from the browser's URL.
userEmail Email of the user viewing the dashboard. The user must exist in Bold BI and have permission to access it.
embedSecret Secret key used to sign authorization requests.
How To get: Retrieve this from the Bold BI settings page.

Important: Never expose embedSecret to the client. Generate tokens only on your backend and return access_token to the browser.
