Area Chart

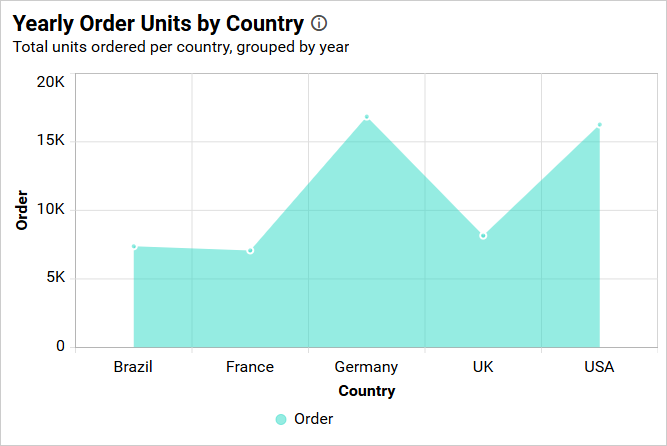

The Area Chart enables you to compare values for a group of unordered items across different categories by using filled curves that are arranged vertically.

Area Chart

How to configure the table data to area chart?

An Area Chart requires at least one value element and one column element in order to be displayed. The measure or expression field that you wish to analyze can be placed in the Y Values block. The dimension that you want to use for categorizing the measure can be placed in the Columns block. If you want to categorize based on a series, you can also place the corresponding dimension in the Rows block.

The following steps explain how to configure data for an area chart:

  1. Please drag and drop the area chart widget onto the canvas and resize it to your desired size.

  2. Please click the Data Source button in the configuration panel.

  3. Click the CREATE NEW button to initiate a new connection from the connection type panel.

  4. In the connection type panel, click on any one of the listed connection type buttons (here, the Microsoft SQL connection type is selected for demonstration).

  5. In the NEW DATA SOURCE configuration panel, fill in the connection type and related details. Then, click on the Connect button.

  6. Drag your preferred table or view from the left pane in the data design view, and then click the Save button.

  7. Click the Properties button in the configuration panel to open the property pane.

  8. Now, switch to the ASSIGN DATA tab.

  9. The data tab will be opened, displaying the available measures and dimensions from the connected data source.

  10. You can add the required data from Measures and Dimensions into the required field.

Adding Value(s)

You can add more than one Measure to the Y Values field by dragging and dropping the required measures.

Click on the Settings option to change the required summary type from the available summary types shown in the Settings menu.

You can filter the data to be displayed in the chart by using the filter. For more details, refer to the filter.

You can format the data to be displayed in the chart by using the format option. For more details, refer to the measure format

To remove the added value fields, click the highlighted button.

You can add more than one column from the Dimensions field to the Y Values field.

Adding Columns

You can add more than one value to the Columns field.

The area chart will be rendered in this manner.

You have the option to change the settings.

Renaming fields

The configured field names can be edited by using the Rename option provided in the settings menu.

Sorting data

You can sort the dimension data using the Sort option under the Settings menu list. To apply sorting to the data, refer to the Sort.

Filtering data

You can apply filters by selecting the “filters” option in settings. For more details, please refer to the filter.

To view all records, click on Show All Records.

Similarly you can add the Measures and Expression Columns into column field. Add more than one value to the Columns field, an alert message will be shown. Click Yes to enable the option.

NOTE: If you click No, a single value will be added to the Columns field.

The selected view of the chart region is drilled.

Adding Rows

You can drag and drop the Dimension into the Rows field.

You can apply filter and sort options for the rows field, if required.

This will render an area chart in a series.

How to format area chart?

You can format the area chart to better illustrate the view you require by using the settings available in the Properties tab.

To format an area chart, follow these steps.

Please drag and drop the area chart onto the canvas and resize it to your desired size.

Please configure the data into an area chart.

Please focus on the area chart and click on the widget settings.

The property window will be opened.

You can view the list of properties that are available for the widget, with the default value.

General Settings

Name

This feature enables you to modify the title for the area chart widget.

Subtitle

This area chart widget allows you to provide the subtitle.

Description

This area chart widget allows you to provide a description about it.

Basic Settings

Show Tooltip

This option allows you to toggle the visibility of the tooltip in the chart.

Chart Type and axis

Click the Change button to open the Chart Type and Axis Settings dialog.

Chart Type: This feature enables you to change the widget view from the current chart type to a different chart type.

Secondary Axis: By default, the configured field is plotted as the primary axis. If you enable this option, the selected field will be plotted as the secondary axis.

Enable Animation

It animates the measure values when you toggle the Enable Animation feature.

Show Value Labels

This feature enables you to toggle the visibility of value labels.

If you Disable Show Value Labels properties, the dependent properties, which are color, Value label position, Value label rotation and Value label suffix, will be hidden.

Value Label Color

This feature enables you to customize the color of the value label.

Value Label Position

This option allows you to customize the position of the value label in the chart. By default, it is set to ‘Auto,’ so the label position for the area chart will be set as Top.

Value Label Rotation

This allows you to define the rotation angle for the display of value labels.

Legend Settings

Show Legend

A legend is a text used to describe the plotted data. This allows you to toggle the visibility of the legend in the chart and also change the position of the legend text by selecting through a combo box.

Enabling the Custom Legend Text option will allow you to define a custom text, using the text area, to display for each legend series in the chart by selecting from the combo box.

Legend Interactivity

The chart legend interactivity option allows you to control the behavior of the chart legends. This option provides the ability to make chart legends non-clickable, which can be particularly useful in scenarios where you do not want users to hide or show series data by clicking on the legend. This feature might also be helpful when displaying critical pieces of data that should always be present for accuracy and context.

Disabling the Interactivity feature in the Legend Settings category prevents you from clicking on the legends.

Enabling the Interactivity feature under the Legend Settings category allows you to click on the legends.

Legend Label Color

This allows you to change the title of the chart legend and the colors of its labels.

Legend Position

A Legend is a text used to describe the data plotted. This option allows you to place the legend at the position of Left, Right, Top, and Bottom.

Legend Alignment

Legend Alignment enables you to control how the legend is positioned within its allocated space. For detailed guidance, refer to the Legend Alignment section.

Legend Shape

This allows you change the shape of the legend.

Circle

This option allows you to change the shape of the legend in a Circle.

Series Type

This option allows you to change the shape of the legend in a Series.

Legend Title

This allows you to add the legend title for the chart, and it will be reflected with the Show Legend.

Text Overflow

This option allows you to customize the legend text based on the value of the Text Width property.

None

This option allows you to render legend items without wrapping or trimming.

Trim

This option allows you to trim the legend items if their legend exceeds the value of Text Width.

Wrap

This option allows you to wrap legend items based on the value of Text Width.

Text Width

This option allows you to set the maximum width for the Legend Items, and it is applicable only if text-overflow is set as Trim or Wrap.

If you uncheck the Show Legend property in the property panel, the dependent properties Legend color, Legend position, customization button and Legend title are also hidden.

NOTE: For a single series, the legend will not be visible.

Axis

This section enables you to customize the axis settings in a chart.

Title color

This enables you to customize the color of the axis title.

Label color

This enables you to customize the color of the axis label.

Show Category Axis

This allows you to enable the visibility of the Category Axis.

If you disable the Show Category Axis option, dependencies properties, which are Show axis title, Axis title text, Trim overflow mode, Trim axis labels, Label Rotation and Auto Interval option will be hidden.

Category Axis Title

This allows you to edit the title of the Category Axis for the chart, which will be reflected as the name of the x-axis on the chart.

If we uncheck the Show Axis Title property, the Axis title text box property will be hidden.

Label overflow mode

This allows you to handle the display mode of the overlapping labels in the Category Axis.

Trim

This option trims the end of the overlapping label on the axis.

Hide

This option hides the overlapping label on the axis.

Trim Axis Labels

This option allows you to trim the axis labels based on the value of the Maximum Label Width property.

Label Maximum Width

This option allows you to set a maximum width for the axis labels, and it can also be customized when the trim axis label option is enabled.

Category Axis Label Rotation

This allows you to define the rotation angle for displaying the category axis labels.

Auto Interval and Interval

By default, the Auto Interval property is enabled. The Auto Interval property is used to set auto intervals based on the number of data points for category axis labels. If a user wants to customize the interval, they need to disable the auto interval and set the required interval.

Show Primary Value Axis

This allows you to enable the Primary Value Axis for the chart.

If you disable the Show Primary Axis option, dependencies properties, which are Axis title, Axis title text, Axis type and Axis Format properties will be hidden.

Primary Value Axis Title

This allows you to edit the title of the Primary Value Axis. It will be reflected in the y-axis name of the chart.

Inverse Axis

By default, the chart axis shows positive values at the top and negative values at the bottom. However, there are times when we need to invert the axis and display negative values at the top and positive values at the bottom. For example, when binding temperature data to the chart and wanting to display negative values at the top, we can utilize this property.

When this property is enabled, the chart will display negative values on the top and positive values on the bottom.

Axis Range Settings

This allows you to manually set the minimum, maximum, and interval values of the primary value axis through the Axis Range Settings dialog.

It will be reflected on the primary value axis of the chart.

Parameter Support in Axis range:

This feature allows you to dynamically set the minimum, maximum, and interval values of the primary value axis through the Axis Range Settings dialog by using the values of the dashboard parameters. Only number-type dashboard parameter values are allowed in the axis range properties. You can create multiple types of dashboard parameters.

  1. Single parameter value.
  2. Range parameter value.
  3. Data source field based parameter values.

For more details about dashboard parameter, refer to the Dashboard parameter documentation.

Single Parameter Value:

A single value is stored in this type of parameter.

  1. Create a dashboard parameter in the number type as shown below.

Click on the axis range settings dialog and enter @ in the textbox. Select the parameter value (Numeric parameter values are only allowed in the minimum, maximum, and interval).

Now the parameter value is reflected in the chart axis.

Range Parameter Value:

If you want to establish the same ranges in multiple cases, create the parameter value for the range type. This type of parameter includes the start and end values.

  1. Create a parameter of type range.

  2. Click the axis range settings dialog and enter @ in any textbox (minimum, maximum, and interval). The range parameter is split into start and end parameters. The value of the first textbox is stored in the start parameter, and the value of the second textbox is stored in the end parameter. Select the parameter value (only Number type parameter values are allowed).

  3. The value of the parameter is reflected on the chart axis.

Data Source Field Based Parameter Value:

  1. Create a parameter in the data source type, wherein you can choose any field. The value of the parameter will be determined by the selected field value.

  2. Click on the axis range settings dialog and enter @ in any textbox (minimum, maximum, and interval). Then, select the parameter value.

  3. The value of the parameter is reflected in the axis of the chart.

Grid Line

Primary Value Axis

This allows you to enable the gridlines for the Primary Value Axis in the area chart.

Category Axis

This allows you to enable the gridlines for the Category Axis in the area chart.

Secondary Value Axis

This feature enables you to activate the gridlines for the Secondary Value Axis in the area chart.

Font settings

This section allows you to customize the font size of chart elements.

Auto font Size and font size

By default, the Auto Font Size property is enabled. The auto font size property is used to set the font size based on the resolution of the dashboard viewing client machine. If the user wants to customize or set a fixed font size, then the user needs to disable the auto font size and set the required font size.

Container Appearance

Title Alignment

This allows you to handle the alignment of the widget title to either the left, center, or right.

Title Color

This allows you to apply the text color to the widget title.

Title Auto Font Size

When Auto Font Size is enabled, the font size of the title will be adjusted automatically if the screen resolution varies.

Font Size

This feature enables you to apply a specific font size to the widget title if the Title Auto Font Size is turned off. The value can range from 10 to 44.

Subtitle Auto Font Size

When Auto Font Size is enabled, the subtitle’s font size will be automatically adjusted if the screen resolution varies.

Font Size

This allows you to apply the specified font size to the widget title when the Subtitle Auto Font Size is disabled. The value can range from 10 to 32.

Auto Padding

When Auto Padding is enabled, the padding of the widget container will automatically adjust if the size of the widget changes.

Padding

This allows you to customize the padding of the widget container if the Auto Padding is disabled. The value can be between 0 and 25.

Show Border

This feature enables you to toggle the visibility of the border surrounding the widget.

Corner Radius

This allows you to apply the specified radius to the widget corners if the Show Border is enabled. The value can be between 0 and 10.

Show Background Image

This feature allows you to set the background image for the spline area chart widget.

Background Color

This allows you to set the background color for the spline area chart widget.

Transparency

This property allows you to specifies the transparency for the background color.

Show Shadow

This feature allows you to toggle the visibility of the shadow surrounding the widget.

Container actions

Show Header

This allows you to enable or disable the widget title of the area chart.

Allow Maximize View

This allows you to enable or disable the maximized mode of the area chart widget. The visibility of the maximize icon in the widget header will be defined based on the setting in the viewer.

Allow CSV Export

This allows you to enable or disable the CSV export option for the area chart widget. Enabling this allows you to export the summarized data of the widget view to CSV format in the viewer.

Allow Excel Export

This allows you to enable or disable the Excel export option for the area chart widget. Enabling this allows you to export the summarized data of the widget view to (.xlsx or .xls) format in the viewer.

Allow Image Export

This allows you to enable or disable the Image export option for the area chart widget. Enabling this allows you to export the view of the widget to image format (.jpg), (.png), or (.bmp) in the viewer.

Allow PDF Export

This allows you to enable or disable the PDF export option for the area chart widget. Enabling this allows you to export the view of the widget to pdf format in the viewer.

Enable Comments

This allows you to enable or disable comment for the dashboard widget. For more details, refer to the Commenting Widget.

Allow View Underlying Data

This allows you to visualize the raw data associated with a widget at runtime.

To learn more about viewing the underlying widget data, refer to the view data documentation.

Pin Widget

This allows you to pin the widget.

Responsive Behavior

We hide the widget elements based on the size of the widget for better readability.

When the chart has been placed with less than 7 columns chart Y-axis labels, Y-axis titles will be hidden.

When the chart has fewer than 6 rows, the X-axis labels, X-axis titles, and gridlines will be hidden.
