Stacked Bar Chart

The stacked bar chart allows you to compare multiple measures through horizontally stacked bars.

Stacked Bar Chart

How to configure the flat table data to stacked bar chart?

A stacked bar chart requires at least one value element and one column element to be displayed. The measure or expression field that you want to analyze can be placed in the Value(s) block. The dimension that you want to use to categorize the measure can be placed in the Columns block. If you want to categorize based on a series, you can also place the corresponding dimension in the Rows block.

The following steps explain how to configure data for the stacked bar chart.

  1. Drag and drop the stacked bar chart onto a canvas and resize it to your desired size.

Drag and drop the stacked bar chart

  1. Click the Data Source button in the configuration panel.

Data Source

  1. Click the CREATE NEW button to initiate a new connection from the connection type panel.

Datasource button

  1. In the connection type panel, click on any one of the listed connection type buttons. (Here, the Microsoft Excel connection type is selected for demonstration.)

Datasource list

  1. In the NEW DATA SOURCE configuration panel, fill in the connection type and related details. Then, click the Connect button.

Connect

  1. Drag your preferred table or view from the left pane in the data design view and click the Save button.

Virtual table

  1. Click the Properties button in the configuration panel to open the property pane. Now, switch to the ASSIGN DATA tab.

Designer properties button

Stacked bar assign data

  1. The data tab will be opened, displaying the available measures and dimensions from the connected data source.

Data tab

  1. You can input the necessary data from Measures and Dimensions into the designated field.

Adding Value(s)

You can add more than one Measures into the Value(s) field by dragging and dropping the required measure.

Add more than one Measures

Click the Settings option to change the name by using the Rename option and selecting the required summary type from the available summary types shown in Settings.

Settings

Filtering data

You can filter the data to be displayed in a funnel chart by using a filter. For more details, refer to the filter.

Configuring widget filters

Formatting data

You can format the data to be displayed in the chart by using the format option. For more details, refer to the measure format

Formatting measure type column

Remove Fields

To remove the added value fields, click the highlighted button.

Click highlighted button

You can add more than one column from the Dimensions field to the Y Values field.

Adding Columns

You can add more than one value to the Columns field. If you add more than one column, then the drill-down option is automatically enabled.

Add more than one value into Columns

The stacked bar chart will be rendered in this manner.

Stacked bar chart

You can change the settings.

Settings

Renaming fields

The field names that have been configured can be edited by using the Rename option provided in the settings menu.

Rename

Sorting data

You can Sort the dimension data using the Sort option located in the Settings menu list. To apply sorting to the data, refer to the Sort.

Sort

Filtering data

To apply filters, select the Filter(s) in the settings. For more details, refer to the filter.

Configuring filter for dimension column

To display all records, click on Show All Records.

Similarly, you can add the Measures and Expression Columns into column field.

Multi-Level Drill Down

If more than one value is added to the Columns field, an alert message will be shown. Click Yes to enable the option.

NOTE: If you click No, a single value will be added to the Columns field.

Drill alert

The selected view of the chart region is drilled.

Drilled view

Drill up

Once you’ve drilled down, you can drill up to the previous view using the breadcrumb navigator located at the top of the widget.

Drill up

Adding Rows

You can drag and drop the Dimension into the Rows field.

Adding Rows

If necessary, you can apply a filter and sort option for the rows field.

This will render a stacked bar chart in a series.

Stacked bar chart in series

Hidden Column

Hidden columns are useful in cases where we do not want the fields to participate in the visualization, but only to be used for linking, filtering and view data.

Hidden column

We can configure both measure and dimension fields in the hidden column. For measure fields, we will have all the settings except formatting and filtering.

Measure

In the case of dimension fields we will having the following options only. In Date fields we will having all available types except sorting, relative date filter, settings and filters.

Dimension

Date

Linking

The primary use case for hidden columns is linking. When configuring hidden columns, we can see that the fields configured in hidden columns are listed in the linking section. When configuring the column in linking, we can pass the corresponding column value as a linking parameter.

Measure Based Example: If we want to pass the number of matches played as a URL parameter without influencing the visualization, we can configure the matches in the hidden columns and incorporate them into the link.

Linking

Dimension Based Example: If we wish to pass the number of Team Name played as an URL parameter but do not want it to influence the visualization, we can configure the Team Name in the hidden columns and incorporate them into the link.

Linking

Filtering

You can use hidden columns to filter data in the visualizations. To do this, configure the hidden columns and then click on the filter icon below.

Filtering

Click on the Custom button that is highlighted in the filter configuration dialog image below. This will display a list of all the fields that have been configured in the widget. Retain the field that is configured in the hidden column and remove the remaining fields. Finally, click the Update button.

Filtering

Now, we can see in the image below that the data is filtered based on the hidden column field instead of the actual column that we bound in the widget.

Filtering

For more details about filtering the widget data, refer to the Cross Filter Configuration documentation.

View Data

You can view the data in the hidden columns in the underlying data view. This is useful for checking the data in more detail and can help you identify any issues with the data.

View data

NOTE: We do not recommend configuring lower hierarchy data in hidden columns, as indicated by the information icon in the Hidden Column section.

Hidden Column

The chart below displays the goals and attempts on target by each team without any hidden columns.

Before

If we configure lower hierarchy data (player name) in hidden columns compared to the column and row field data, the data configured in the widgets gets duplicated, and individual columns are split based on the hidden column field. This affects the chart visualization, as can be seen in the image below.

After

How to format stacked bar chart?

You can format the stacked bar chart for a better illustration of the view you require through the settings available in the Properties tab.

To configure data into a stacked bar chart, follow these steps:

  1. Drag and drop the stacked bar chart onto the canvas and resize it to your desired size.

  2. Configure the data for the stacked bar chart.

  3. Focus on the stacked chart and click on the widget settings.

The property window will open.

Property click

Property window

You can view the list of properties that are available for the widget, with the default value.

General Settings

General Settings

Name

This feature allows you to set the title for the stacked column chart widget.

General Settings

Subtitle

This feature allows you to set a subtitle for this stacked-column chart widget.

General Settings

Description

This allows you to provide a brief explanation about this stacked-column chart widget.

General Settings

Basic Settings

Basic Settings

Show Tooltip

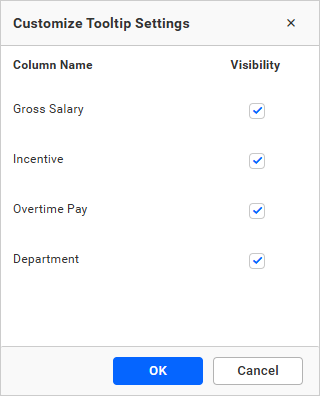

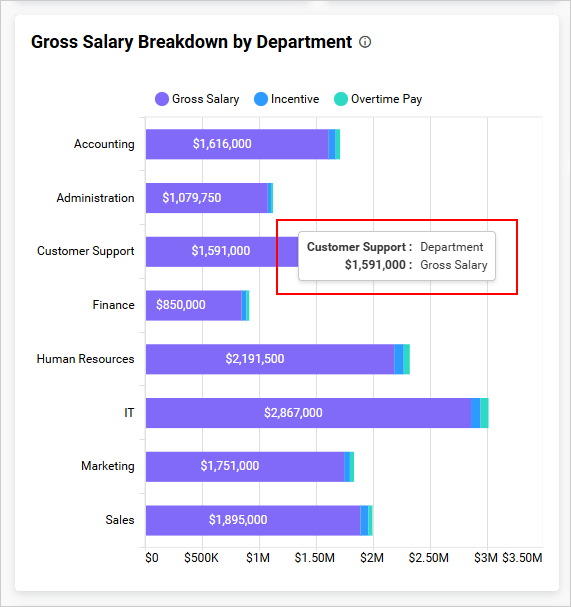

This option allows you to toggle the visibility of tooltips in a chart.

General Settings

Chart type and axis

Click the Change button to open the Chart Type and Axis Settings dialog.

Chart type and axis settings dialog

Chart Type: This feature enables you to change the widget view from the current chart type to another convertible chart type.

Secondary Axis: The configured field is plotted as the primary axis by default. If you enable this option, the selected field will be plotted as the secondary axis.

Secondry axis in chart

Enable Animation

It animates the measure values when you toggle the Enable Animation.

Show Value Labels

This feature enables you to switch the visibility of value labels.

Show Value Labels

If you disable the Show Value Labels properties, the dependent properties, which are color, Value label position, Value label rotation and Value label suffix will be hidden.

Show value label

Customize

This feature allows you to customize the toggle visibility of value labels in each series.

Value labels customization change

Value labels customization

Value Label Color

This allows you to customize the color of the value label.

Value label Color Option

Value label Color

Value Label Position

This option allows you to customize the position of value labels in a chart. By default, it is set to Auto, so the label position for a stacked bar chart will be set to the middle.

Value label position

Value Label Rotation

This allows you to define the rotation angle for displaying the value labels.

Value Label Rotation

Value Label Suffix

This feature enables you to display or conceal the suffix value of value labels.

Suffix Value

This feature allows you to customize the suffix value of value labels.

Suffix Value

Note: When I increased the height and number of data in the chart, the value label was hidden. I used the label rotation property to make the label visible.

Show items with no data

This allows you to display data for columns that do not have a value.

Empty Point Mode Gap

Empty Point Mode

This allows you to handle the display mode of the data point values if they are null or undefined when the Show Items With No Data option is enabled.

Empty Point Mode Gap

Gap

This option enables you to display null or undefined values as gaps.

Empty Point Mode Gap

Zero

This option allows you to display the null or undefined values on the zero axis.

Empty Point Mode Zero

Average

This option allows you to display the null or undefined values along with the average value.

Empty Point Mode Average

Column Width

This option allows you to increase or decrease the width of the column by using the Column Width feature.

Column Width Customization

Column Width

Column Spacing

This option allows you to increase or decrease the space between the columns by using the Column Spacing.

Column Spacing Customization

Column Spacing

Enable Smooth Scroll

When this support is enabled, the size of the chart scroll bar thumb will be calculated based on the total number of records. As a result, you will be able to view the last record by scrolling just once.

Page Size

This option allows you to set the number of records that need to be fetched on initial load.

Legend Settings

Legend settings

Show Legend

A legend is a text used to describe the plotted data. This allows you to toggle the visibility of the legend in a chart and also change the position of the legend text by selecting through a combo box.

Show Legend

Enabling the option of Custom Legend Text will allow you to define custom text (using the text area) to display for each legend series (selected through the combo box) in a chart.

Legend Interactivity

The legend interactivity option in the chart allows you to control the behavior of the chart legends. It provides the option to make the chart legends non-clickable, which can be particularly useful in situations where you do not want users to hide or show series data by clicking on the legend. This feature can also be beneficial when displaying important data that should always be visible for accuracy and context.

Disabling the Interactivity feature in the Legend Settings category does not allow you to click on the legends.

Legend Interactivity Disable Enabling the Interactivity feature in the Legend Settings category allows you to click on the legends.

Legend Interactivity Enable

Legend Label Color

This option enables you to modify the title and label colors of the chart legend.

Chart Legend Color Option

Chart Legend Color

Customize

You can customize the legend text using the Custom Legend Settings dialog. This dialog displays a list of legend text labels on the left and a corresponding text area on the right. You can add formatted text to the text area to be displayed instead.

Legend customization

Legend customization Change

Legend Item as Dropdown

Legends can be displayed as a dropdown menu when the legend position is set to “dropdown.” When you hover over a chart, a legend icon appears. Clicking on this icon will bring up a legend dropdown. This feature allows you to toggle the visibility of the legend in the chart.

This option will hide the legends in the chart area, resulting in increased chart space and enhanced visibility.

The chart legend dropdown option can be used to simplify viewing complex charts with multiple data sources. For example, if you have a chart displaying sales data for the different years, you can use the legend dropdown to deselect all other years and focus only on a specific year.

Legend item as dropdown

Legend Shape

This allows you to change the shape of the legend.

Circle

This option allows you to change the shape of the legend to a Circle.

Show Legend shape

Series Type

This option allows you to change the shape of the legend in Series.

Show Legend shape Series

Legend Title

This allows you to add the legend title for the chart, which will be reflected with the Show Legend.

Show Legend Title

Text Overflow

This option enables you to customize the legend text according to the value of the Text Width property.

None

This option allows you to display the legend items without wrapping or trimming them.

Legend Overflow None Option in chart

Legend Overflow None in chart

Trim

This option allows you to trim the legend items if their legend exceeds the value of Text Width.

Legend Overflow Trim Option in chart

Legend Overflow Trim in chart

Wrap

This option allows you to wrap legend items based on the value of Text Width.

Legend Overflow Wrap Option in chart

Legend Overflow Wrap in chart

Text Width

This option allows you to set the maximum width for the Legend Items, and it is applicable only if text-overflow is set as Trim or Wrap.

Legend Text Width Option in chart

Legend Text Width in chart

If you uncheck the Show Legend property in the property panel, the dependent properties, which are Legend color, Legend position, customization button and Legend title are also hidden.

NOTE: For single series, Legend wont be visible.

This option enables you to format the values of the primary and secondary axis using the formatting details provided by clicking the Format button. For more information, please consult the measure format.

Formatting Axis

To configure the linking of a URL or dashboard with the widget, access its settings. For further information, please refer to the section on Linking.

Link

Axis

Axis

This section allows you to customize the axis settings in the chart.

Title color

This feature allows you to customize the color of the axis title.

Title color

Label color

This feature allows you to customize the color of the axis label.

Labelcolor

Show Category Axis

This allows the visibility of the Category Axis to be enabled.

Show Category Axis

If you disable the Show Category Axis option, dependencies properties, which are Show axis title, Axis title text, Trim overflow mode, Trim axis labels, Label Rotation and Auto Interval option will be hidden.

Show value label

Show Category Axis Title

This allows you to enable the visibility of Category Axis title.

Show Category Axis Title

Category Axis Title

This allows you to edit the title of the Category Axis for the chart. It will be reflected as the name of the x-axis in the chart.

Category Axis Title

If we uncheck the Show Axis Title property, the Axis title text box property will be hidden.

Show Category axis title

Label overflow mode

This allows you to manage the display mode of the overlapping labels in the Category Axis.

Trim

This option trims the end of the overlapping label on the axis.

Label overflow mode Trim

Hide

This option hides the overlapping label on the axis.

Label overflow mode Hide

Trim Axis Labels

This option allows you to trim the axis labels based on the value of the Maximum Label Width property.

Label Maximum Width

This option allows you to set a maximum width for the axis labels, and it can also be customized when the trim axis label option is enabled.

Label maximum width

Trimmed label

Category Axis Label Rotation

This allows you to define the rotation angle for displaying the category axis labels.

Category Axis Label Rotation

Auto Interval and Interval

Axis interval

By default, the Auto Interval property is enabled. The Auto Interval property is used to automatically set intervals based on the number of data points for category axis labels. If the user wants to customize the interval, they need to disable the auto interval and set the desired interval.

Axis interval Value

Show Primary Value Axis

This allows you to enable the Primary Value Axis for the chart.

Show Primary Value Axis

If you disable the Show Primary Axis option, dependencies properties, which are Axis title, Axis title text, Axis type and Axis Format properties will be hidden.

Show primary value axis

Show Primary Value Axis Title

This allows you to enable the visibility of the title Primary Value Axis on the chart.

Show Primary Value Axis Title

Primary Value Axis Title

This allows you to edit the Primary Value Axis title. It will reflect in y-axis name of chart.

Primary Value Axis Title

Inverse Axis

By default, the chart axis shows positive values at the top and negative values at the bottom. However, there are times when we need to invert the axis and display negative values at the top and positive values at the bottom. For example, when we bind temperature data to the chart and want to display negative values at the top, we can utilize this property.

When this property is enabled, the chart will display negative values at the top and positive values at the bottom.

Inversed axis

Axis Range Settings

This allows you to manually set the minimum, maximum, and interval values of the primary value axis through the Axis Range Settings dialog.

Axis Range Settings

It will be reflected in the primary value axis of the chart.

Axis Range Output

Parameter Support in Axis range:

This feature allows you to dynamically set the minimum, maximum, and interval values of the primary value axis through the Axis Range Settings dialog, using the dashboard parameter values. Only number-type dashboard parameter values are allowed in the axis range properties. You can create multiple types of dashboard parameters.

  1. Single parameter value.
  2. Range parameter value.
  3. Data source field based parameter values.

For more details about dashboard parameters, please refer to the Dashboard parameter documentation.

Single Parameter Value:

A single value is stored in this type of parameter.

  1. Create a dashboard parameter in the number type as shown below.

Axis Range Settings Output

Click on the axis range settings dialog and enter @ in any textbox (minimum, maximum, and interval). Select the parameter value (Only number type parameter values are allowed).

Axis Range Settings Output

Now, the parameter value is reflected on the chart axis.

Axis Range Settings Output

Range Parameter Value:

If you want to use the same ranges in multiple cases, create a parameter value of the range type. This type of parameter includes both the start and end values.

  1. Create a parameter in range type.

Axis Range Settings Output

  1. Please click on the axis range settings dialog and enter @ in any textbox (minimum, maximum, and interval). The range parameter is divided into start and end parameters. The value entered in the first textbox is stored in the start parameter, while the value entered in the second textbox is stored in the end parameter. Please select a parameter value (only Number type parameter values are allowed).

Axis Range Settings Output

  1. The value of the parameter is reflected on the chart axis.

Axis Range Settings Output

Data Source Field Based Parameter Value:

  1. Create a parameter within the data source type. Within this parameter, select any field. The value will be determined by the selected field’s value.

Axis Range Settings Output

  1. Click the axis range settings dialog and enter @ in any textbox (minimum, maximum, and interval). Then, select the parameter value.

Axis Range Settings Output

  1. The value of the parameter is reflected in the axis of the chart.

Axis Range Settings Output

Axis Format

This option enables you to format the values on the primary and secondary axes using the formatting details provided through the Format button. For additional information, please refer to this measure format.

Formatting Axis

Grid Lines

Grid Lines

Primary value Axis

This allows you to enable the gridlines for the Primary Value Axis in the stacked bar chart.

Primary value Axis

Category Axis

This allows you to enable the gridlines for the Category Axis in the stacked bar chart.

Category Axis

Secondary value Axis

This enables you to enable the gridlines for the Secondary Value Axis in the stacked bar chart.

Secondary value Axis

Formatting

This enables you to customize the color of the widget.

Formatting option

Formatting color change

Series Palette

This allows you to apply color to chart series either using a default palette or a custom color palette. By default, the colors will be applied using the default palette. These settings will only be visible if we have configured the row section in the chart.

Series Palette

Use Default Palette

This option allows you to apply a default color for the chart series.

By toggle off the Use Default Palette option, the Color Mapping Type will be shown.

Color Mapping option

Color Mapping Type

By using the Color Mapping type, you have the ability to apply colors to the series based on either data or index.

Color Mapping Type option

Data

It allows you to apply color to chart series based on data. If you want to assign a specific color to specific data (e.g. violet for 2021, sky blue for 2022, and green for 2020), you can use data-based color mapping. The default Color Mapping Type is Data.

Color Mapping Type Data

Index

It allows you to apply color to chart series based on the Index, ensuring that the colors remain consistent even if the data is changed. It displays a maximum of 15 different colors, after which the colors will be repeated from the ones above.

For example, if you are displaying the countries based on the increasing order of the case count, then index-based color mapping will be useful to set the colors based on the rank. For instance, the top-ranked country can be assigned the color red, and this red color will be maintained for the country with the largest case count.

Color Mapping Type Index

Note: We prefer to use index-based color customization only for a minimum amount of data (up to 15 series).

Font settings

This section enables you to customize the font size of chart elements.

Font settings

Auto font Size and font size

By default, the ‘Auto Font Size’ property is enabled. The auto font-size property is used to set the font size based on the resolution of the client machine viewing the dashboard. If the user wants to customize or set a fixed font size, then they need to disable the auto font size and set the required font size.

Filter

Filter

Act as Master Widget

This allows you to define the stacked bar chart widget as a master widget, so that other widgets in the dashboard can listen to its filter action.

Ignore Filter Actions

This allows you to define this stacked bar chart widget to ignore responding to the filter actions applied on other widgets in dashboard.

Hierarchical Filter

Through this option, you can enable or disable hierarchical top N filtering. When applying the Top N filter with multiple dimension columns, the returned data can be customized based on whether the filtering needs to be done as a flat filter or based on the hierarchy of the dimension columns added.

When the Hierarchical Filter option is enabled, the Top N will be applied to each individual column separately, based on the number set for each column.

Container Appearance

This section enables you to customize the Container Appearance for the stacked bar chart widget.

Container Appearance

Title Alignment

This allows you to handle the alignment of the widget title to either the left, center, or right.

Title Color

This allows you to apply the text color to the widget title.

Title Auto Font Size

By enabling Auto Font Size, the title’s font size will automatically adjust if the screen resolution changes.

Font Size

This allows you to apply the specified font size to the widget title if the Title Auto Font Size is disabled. The value can be between 10 and 44.

Subtitle Auto Font Size

When Auto Font Size is enabled, the subtitle’s font size will be automatically adjusted if the screen’s resolution varies.

Font Size

This allows you to apply the specified font size to the widget title if the Subtitle Auto Font Size is disabled. The value can range from 10 to 32.

Auto Padding

When Auto Padding is enabled, the padding of the widget container will be adjusted automatically if the size of the widget varies.

Padding

This allows you to customize the padding of the widget container if the Auto Padding is disabled. The value can be between 0 and 25.

Show Border

This feature allows you to switch the visibility of the border surrounding the widget.

Corner Radius

This allows you to apply the specified radius to the widget corners if the Show Border is enabled. The value can be between 0 and 10.

Show Background Image

This feature enables you to select the background image for the stacked bar chart widget.

Background Color

This allows you to set the background color to the stacked bar chart widget.

Transparency

This property allows you to specify the transparency for the background color.

Show Shadow

This feature enables you to switch the visibility of the shadow surrounding the widget.

Container actions

This section allows you to customize the Container actions for the stacked bar chart widget.

Container Actions

Show Header

This allows you to enable or disable the widget title of the stacked bar chart.

Allow Maximize View

This allows you to enable or disable the maximized mode of the stacked bar chart widget. The visibility of the maximize icon in the widget header will be defined based on the setting in the viewer.

Allow CSV Export

This allows you to enable or disable the CSV export option for the stacked bar chart widget. Enabling this allows you to export the summarized data of the widget view to CSV format in the viewer.

Allow Excel Export

This allows you to enable or disable the Excel export option for the stacked bar chart widget. Enabling this allows you to export the summarized data of the widget view to (.xlsx or .xls) format in the viewer.

Allow Image Export

This allows you to enable or disable the Image export option for the stacked bar chart widget. Enabling this allows you to export the view of the widget to image format (.jpg), (.png), or (.bmp) in the viewer.

Allow PDF Export

This allows you to enable or disable the PDF export option for the stacked bar chart widget. Enabling this allows you to export the view of the widget to pdf format in the viewer.

Enable Comments

This allows you to enable or disable comment for the dashboard widget. For more details, refer to the Commenting Widget.

Allow View Underlying Data

This allows you to visualize the raw data associated with a widget at runtime.

To learn more about viewing the underlying widget data, refer to the view data documentation.

Pin widget

This allows you to pin the widget.

Responsive Behavior

We hide the widget elements based on the size of the widget for better readability.

When the chart has been placed with fewer than 7 columns on the X-axis, the X-axis labels and titles will be hidden.

Widget Element

When the chart has fewer than 6 rows, the Y-axis labels, Y-axis titles, and gridlines will be hidden.

Widget Element

Contents
Contents
