Filtering Views through URL Parameters

Passing Parameter With URL

You can pass parameters to a dashboard by including them in the dashboard URL. Passing parameter values within the URL will apply filters in the dashboard on initial load itself.

To set a dashboard parameter within a URL, use the following syntax:

parameter=value1, value2,…, valueN

where the parameter represents the column name. The parameter can be single-valued or multiple-valued.

To append your query string made with parameters and values to the URL, add a prefix (?) to the query string. If (?) is already present in the URL, add a prefix(&) to the query string.

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?ProductName=Chang

Here is a dashboard view illustrating the same with a single-valued parameter.

URLFilter Single Parameter Value

Here is a dashboard view illustrating the same with a multi-valued parameter.

URLFilter Multiple Parameter Values

Supported Operators

You can also define parameters with operators to search for one or more values, like below.

Operator Syntax
IN parameter=IN(value1, value2,..., valueN)
NOTIN parameter=NOTIN(value1, value2, …, valueN)
BETWEEN parameter=BETWEEN(value1, value2)
INBETWEEN parameter=INBETWEEN(value1, value2)
NOTBETWEEN parameter=NOTBETWEEN(value1, value2)
STARTSWITH parameter=STARTSWITH(value)
ENDSWITH parameter=ENDSWITH(value)
CONTAINS parameter=CONTAINS(value1, value2)

Date Parameters Support

You can define parameters (date and time typed columns) with date and time functions applied to search for formatted date values like the one shown below.

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?Year(OrderDate)=1996

Function Syntax
YEAR YEAR(parameter)=value1, value2, …, valueN
MONTHNAME MONTHNAME(parameter)=value1, value2, …, valueN
QUARTER QUARTER(parameter)=value1, value2, …, valueN
QUARTERYEAR QUARTERYEAR(parameter)=value1, value2, …, valueN
MONTHYEAR MONTHYEAR(parameter)=value1, value2, …, valueN
DAYMONTHYEAR DAYMONTHYEAR(parameter)=value1, value2, …, valueN
MONTHDAYYEAR MONTHDAYYEAR(parameter)=value1, value2, …, valueN
HOURS HOURS(parameter)=value1, value2, …, valueN
MINUTES MINUTES(parameter)=value1, value2, …, valueN
DAY DAY(parameter)=value1, value2, …, valueN
SECONDS SECONDS(parameter)=value1, value2, …, valueN
DATEHOUR DATEHOUR(parameter)=value1, value2, …, valueN
DAYOFWEEK DAYOFWEEK(parameter)=value1, value2, …, valueN
WEEKOFYEAR WEEKOFYEAR(parameter)=value1, value2, …, valueN

List of operators supported in date and time functions. For example, for illustrative purposes, we are using the year date and time function.

Function Syntax
IN YEAR(parameter)=IN(value1, value2, …, valueN)
NOTIN YEAR(parameter)=NOTIN(value1, value2, …, valueN)
BETWEEN parameter=BETWEEN(value1,value2)
INBETWEEN parameter=INBETWEEN(value1,value2)

NOTE: The between and inbetween operators, the value must be in the format M/d/yyyy h:mm tt. Additionally, no date time function is required for this.

Here is a dashboard view illustrating the use of parameters with date and time functions.

URLFilter Date Value

Measure Parameters Support

You can define parameters with measure-typed columns just as shown below:

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?MeasureTypeParameter=value

For measures, you can use the following operators with the value.

Function Syntax
BETWEEN parameter=BETWEEN(value1, value2)
NOTBETWEEN parameter=NOTBETWEEN(value1, value2)
IN parameter=IN(value1, value2, ..., valueN)
NOTIN parameter=NOTIN(value1, value2, ..., valueN)

In addition to these operators, you can apply the following conditions to measure parameters.

Condition
parameter!=value
parameter<value
parameter>value
parameter<=value
parameter>=value

Comma separator is used in the condition to filter with multiple values for the measure column, like parameter=value1, value2, value3, ..., valueN.

NOTE: You are only allowed to pass one parameter value, except for between and not between which require 2 parameter values.

Here is a dashboard view illustrating the use of parameters with measure values.

URLFilter Measure Value

URLFilter Parameter Value

Dimension Parameters Support

You can also pass Dimension type parameter values to filter.

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?DimensionTypeParameter=value

For measures, you can only use the following operators with the value.

Function Syntax
IN parameter=IN(value1, value2, …, valueN)
NOTIN parameter=NOTIN(value1, value2, …, valueN)
STARTSWITH parameter=STARTSWITH(value)
ENDSWITH parameter=ENDSWITH(value)
CONTAINS parameter=CONTAINS(value)

Here is a dashboard view illustrating the use of parameters with measure parameter values.

URLFilter Dimension Value

Special Characters Support

You can also pass parameter values with special characters to filter. To use a value with special characters, you can pass the value inside square brackets as shown below:

Syntax for a single value

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?DimensionTypeParameter=[value"!@"]

Syntax for multiple values

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?DimensionTypeParameter=IN([value1"!@"],[value2"!@"])

Special Characters
!
%
@
$
^
*
(
)
-
_
+
[
]
:
;
"
/
\
?
``
.
>
<

Here is a dashboard view illustrating the use of parameters with special characters.

Special Characters For Single Value

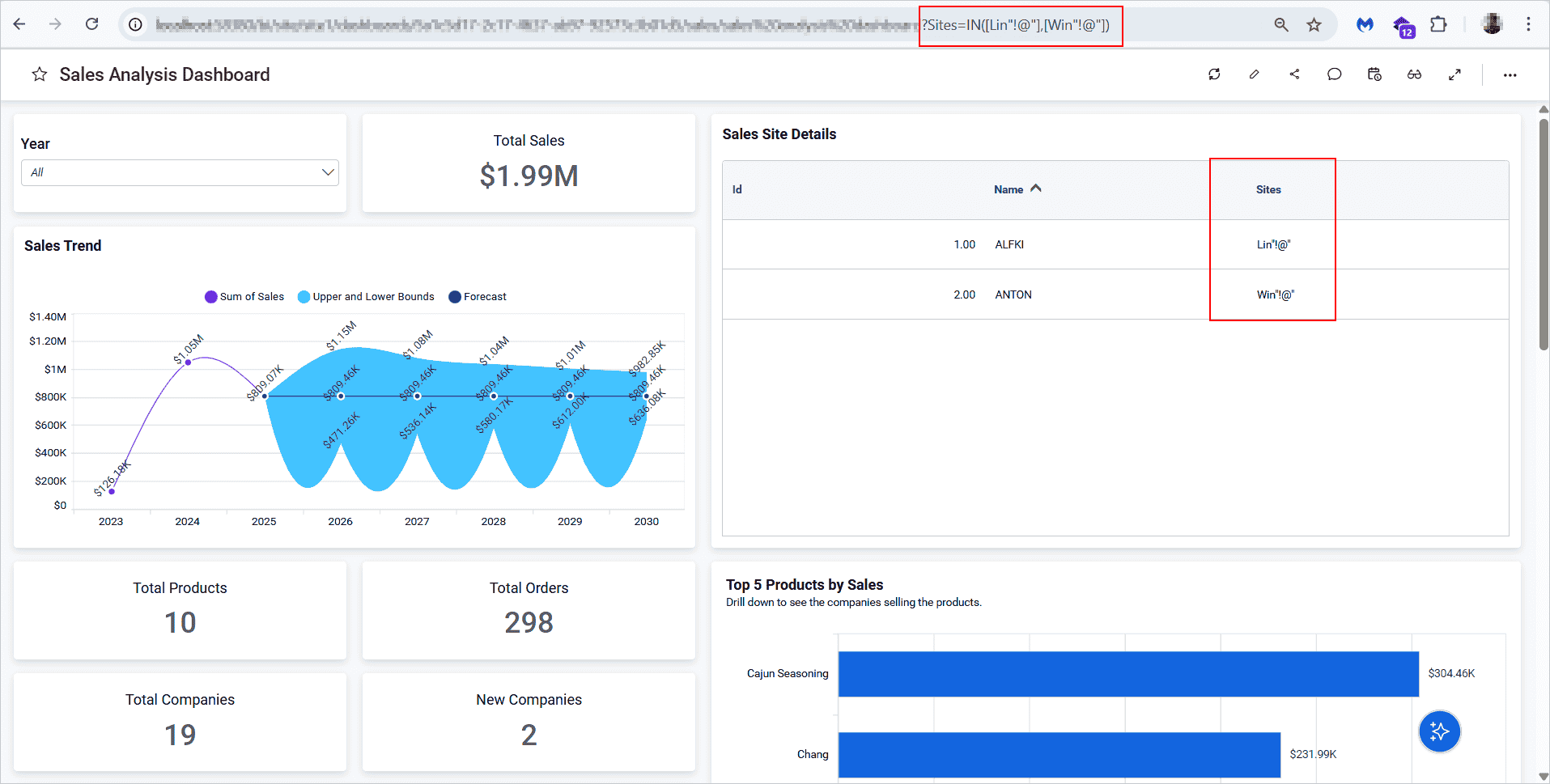

Special Characters For Multiple Value

Passing Keywords with URL

The following keywords are used for our internal purposes. If you have any of these keywords as column names, you can specify them inside square brackets as shown below:

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?[Keywords]=value

Keywords
Id
Comment
tab
showmydashboards
viewid
ismultitab
bi_theme
multitabid
hide_header
Hide_tool
hide_widget_tool
isembed
views
export
dashboard_comments
widget_comment
embed_dashboard_views_edit
embed_dashboard_favorite
embed_dashboard_toolbar
embed_expirationtime
embed_nonce
embed_user_token

Here is a dashboard view illustrating the use of parameters with the mentioned keywords.

Keywords

Passing Parameters with dataSource

You can pass a parameter value along with the DataSource name to specifically filter the data. For this purpose, you can pass the URL as shown below:

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?DataSourceName.ParameterName=value

Here is a dashboard view illustrating the use of parameters with DataSource.

URLFilter Data source

Where Northwind is the required data source name.

Passing Multiple Parameters With URL

You can pass more than one parameter within a URL by introducing an ampersand (& or &&) or vertical bar (| or ||) symbol in between them to differentiate, like below:

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?CustomerID=ALFKI&OrderID=10643||CustomerID=VINET&OrderID=10248

Here is a dashboard view illustrating the same.

Two Different Parameter

Grouped URL Parameters

The Grouped URL Parameters feature allows users to filter values using multiple conditions combined with AND/OR operators. This is achieved by enclosing the conditions within parentheses to define the logical grouping, as shown below:

http://<servername>/<culturename>/dashboards/<dashboardid>/<category>/<dashboardname>?(((CustomerID=ALFKI&OrderID=10643)&City=Berlin)|(ProductName=Aniseed Syrup&Country=Austria, USA))

Below is a dashboard view illustrating this concept: Grouped URL Parameters

NOTE: Parameters cannot be used within grouped URLs.

Limitations of URL Parameter

  • The parameter names and values are case-sensitive.
  • The operators and date & time function names are case-insensitive.
  • Characters like comma (,), ampersand (&), and vertical bar (|) in the value should be prefixed and suffixed with a tilde (~) symbol to differentiate them from syntax elements.

      For example, CompanyName=Syncfusion Inc~,~


  • An invalid parameter name will be ignored for filter consideration.
  • An invalid parameter value will result in There is no data to be displayed in widgets.
  • Parameters are applicable for both live and extract mode in dynamic DataSource creation, but changes in extract mode will only be reflected when the refresh setting is triggered.
  • When a user wants to apply a filter to a dashboard parameter by passing a URL parameter in the dashboard URL, the dashboard parameter name should be unique and not match any column name in the data source. If the dashboard parameter name matches a column name in the data source, the URL parameter will apply the filter to the data source column instead of the dashboard parameter.

      Example Scenario:
      Consider a scenario where a user creates a dashboard parameter named `ShipAddress` with the country name value and uses it in the code view of a data source.

      Create Dashboard Parameter

      Use Dashboard Parameter in Query

      However, the data source also contains a column named ‘ShipAddress’ with shipping address details.

      Column in Data Source

      When applying a URL parameter like ‘Dashboard-URL?ShipAddress=Austria, it will filter the data source column ShipAddress instead of the dashboard parameter ShipAddress. This will result in a There is no data to be displayed message in widgets.

      Column in Data Source
