Google BigQuery Source

Google BigQuery is a fully managed, serverless data warehouse that enables fast SQL-based querying and analysis of large datasets. It is designed to handle massive volumes of data, making it ideal for advanced analytics and business intelligence use cases.

Service Account Credential

Service account credentials are more suitable for server-to-server interactions.

Grab Google Service Account Credentials

To obtain API credentials using a GCP service account, follow these steps:

1. Sign in to https://console.cloud.google.com.
2. Create a service account if necessary.
3. Enable the BigQuery API (refer to Google documentation for detailed instructions).
4. Generate credentials:
   • Navigate to IAM & Admin in the console’s left panel, then select Service Accounts.
   • Find the service account you want to use and click the three-dot menu under the Actions column.
   • Create a new JSON key by selecting Manage Keys > ADD KEY > CREATE.
   • Download the .json file containing the necessary credentials for future use.

Share the Google BigQuery Project with the API

1. Log into your Google Cloud Console.
2. Navigate to the project that contains your BigQuery datasets.
3. In the left-hand menu, go to IAM & Admin > IAM.
4. Click on the “+ Grant Access” button at the top.
5. In the New principals field, enter the client_email from the service account.
6. Assign the required role(s):
   • BigQuery Data Viewer – to view datasets and tables
   • BigQuery Read Session User – to enable fast and efficient reads via the BigQuery Storage AP
   • (Optional) BigQuery Admin – for full read-write access to BigQuery resources
7. Click Save to complete the process.

Connection Properties

The config section in a YAML file includes the following properties:

credentials_path: Path to your service account JSON file
project_id: ID of your Google Cloud project
dataset_id: ID of the dataset in BigQuery

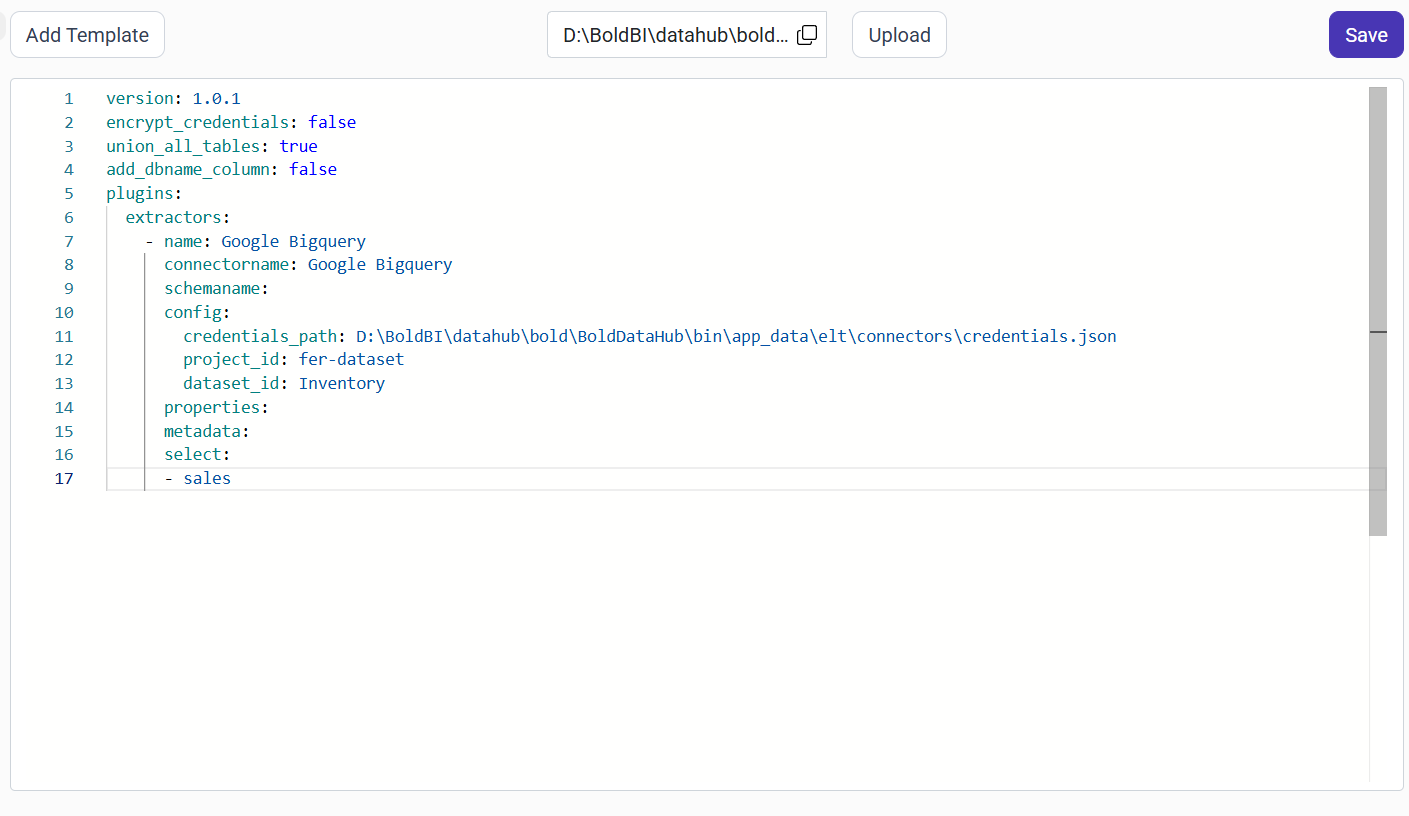

Example Configuration

version: 1.0.1
encrypt_credentials: false
union_all_tables: true
add_dbname_column: false
plugins:
  extractors:
    - name: Google Bigquery
      connectorname: Google Bigquery
      schemaname:
        config:
          credentials_path: C:\\Path\\To\\ServiceAccount.json
          project_id: your-project-id
          dataset_id: your-dataset-id
        properties:
          metadata:
            select:
              - your_table_name

Configure the Data Hub to connect Google Bigquery

1. To start, Click the Bold Data Hub icon on the Navigation Pane.

2. Click Add Pipeline and provide the name for the new pipeline.

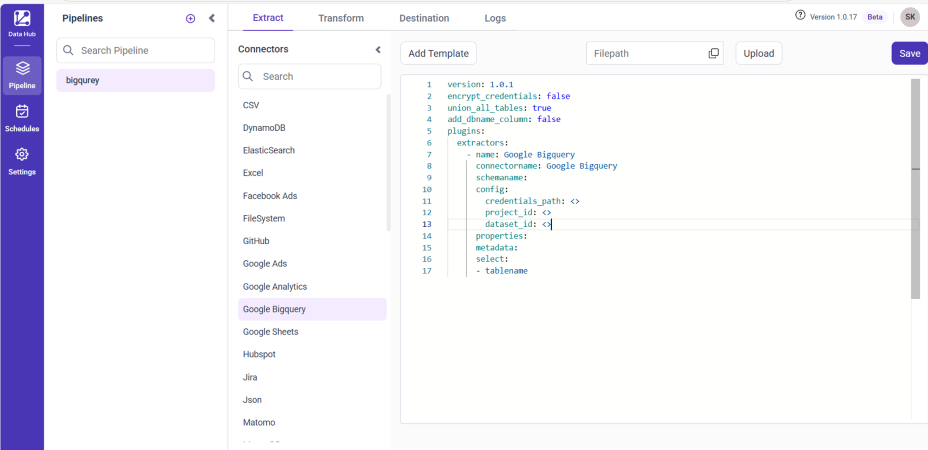

3. Select the newly created pipeline and choose the google Bigquery connector. Double click or Click on Add Template option to add template.

Configuration Parameters

4. Click the “Upload File” button to upload your credentials Json file

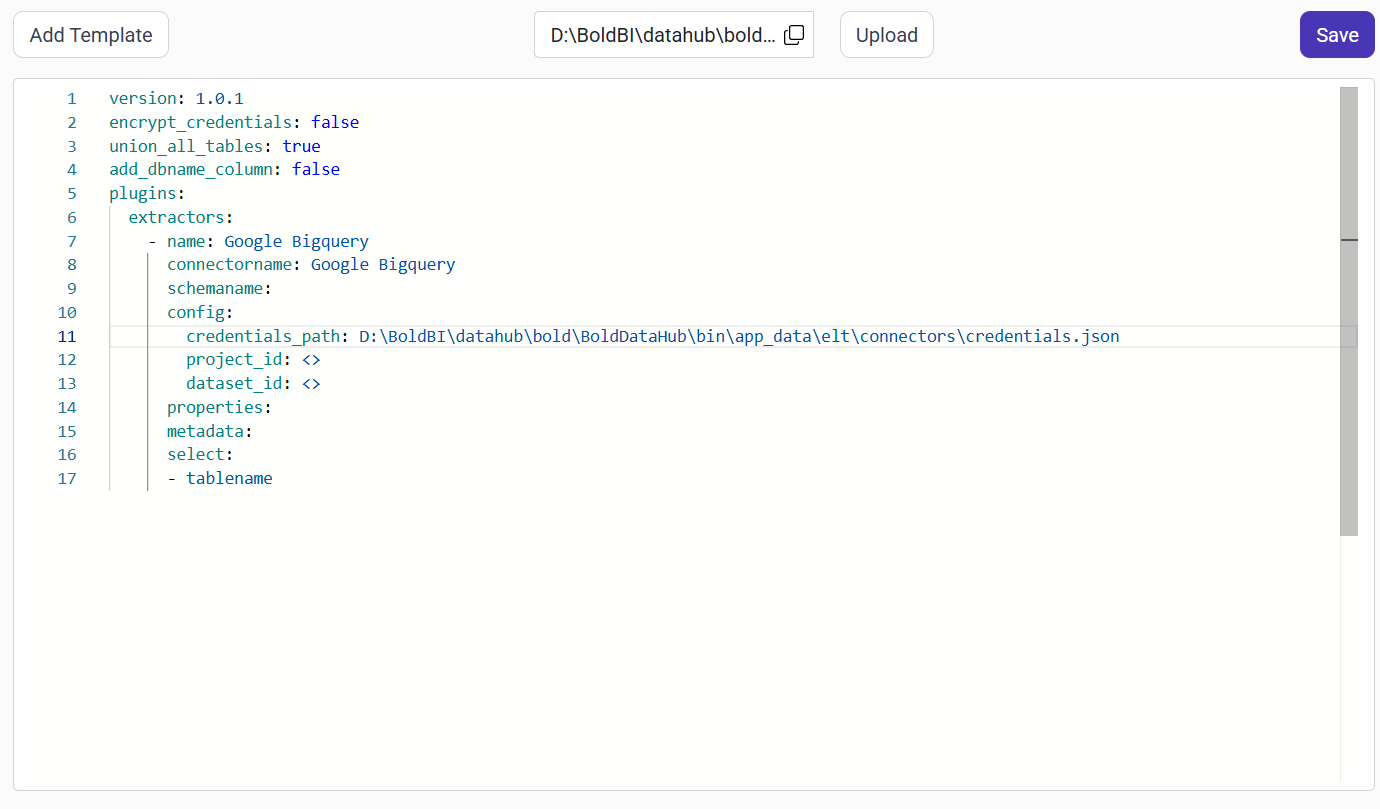

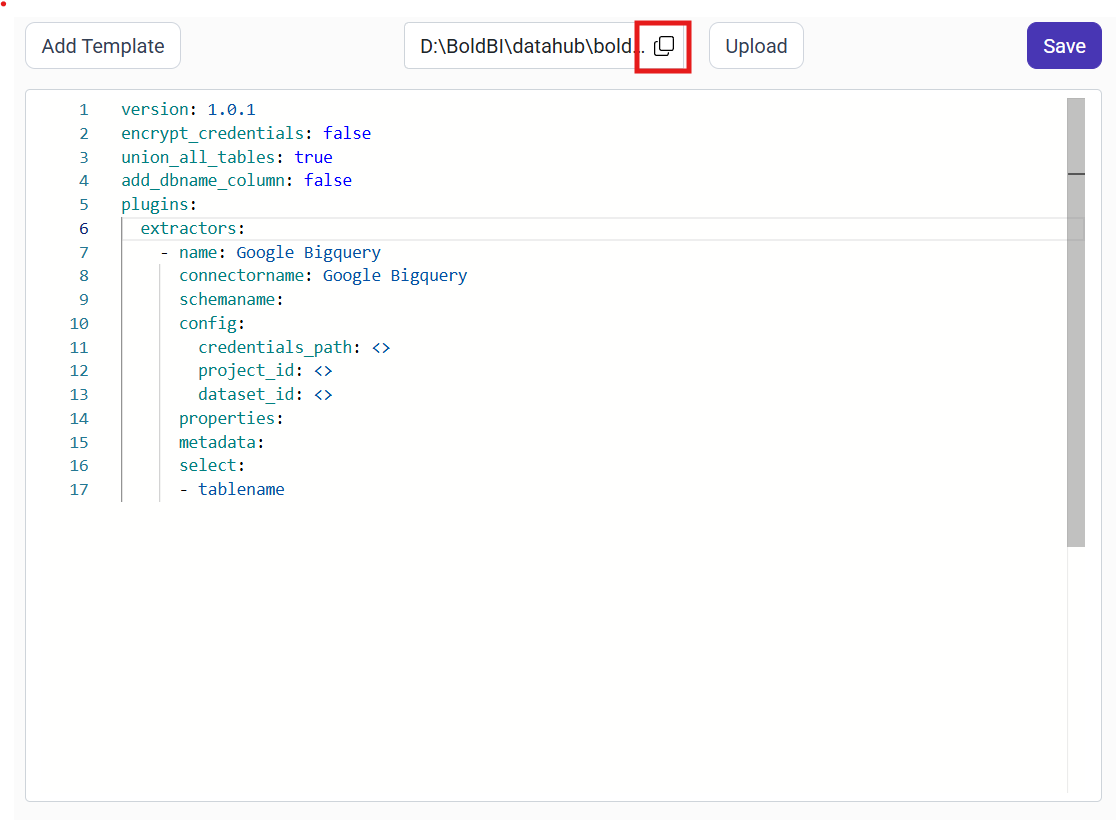

5. Copy the filepath and replace in credentials_path property. If it’s an Json file.

6. Click Save and choose the desired destination to save the pipeline.

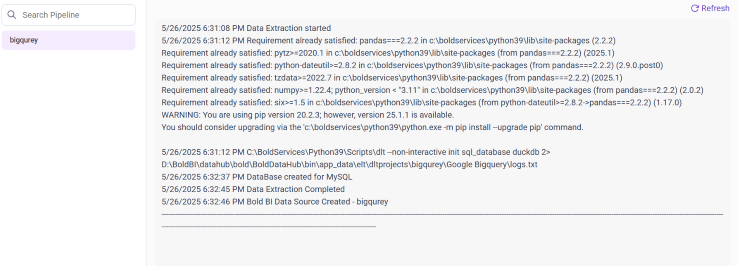

7. Now the pipeline will be saved and started automatically. Click on Logs to see if the run is completed and data source is created in Bold BI.

8. Creating a Pipeline in Bold Data Hub automatically creates a Data Source in Bold BI. The Bold BI Data Source is a live data source to the destination database used in Bold Data Hub. For more information on the relationship between Bold Data Hub Pipeline and the associated Data Sources in Bold BI , please refer to Relationship between Bold Data Hub Pipeline and Associated Data Sources in Bold BI.

Warning:

1. The `Encrypt_Credentials` property should be set to false when updating the new access token on the template. If you have modified other properties, such as 'select' or 'account id', the `Encrypt_Credentials` property must be set to true.
2. The default lifetime of the access token is 1 hour. Therefore, you need to convert it to a long-lived access token in order to use the same token for 60 days. Existing tables should be maintained even if the token has expired or is being used as an invalid token.

Schedule Data Hub Job

1. To configure interval-based scheduling, click on the schedules tab and select the created pipeline and click on the schedule icon and configure it.

2. For on-demand refresh, click Run Now button.

.

3. The Schedule history can be checked using the history option as well as logs.

4. Click on Logs to see if the run is completed and data source is created in Bold BI.

5. Click Edit DataSource Option to view the created tables.
