Python Script Connector for Bold Data Hub

PythonScript is a file with a .py extension that contains a sequence of instructions written in the Python programming language to perform tasks such as automation, data processing or analysis.

Example Configuration

version: 1.0.1
encrypt_credentials: false
union_all_tables: true
add_dbname_column: false
use_snake_casing: true
plugins:
  extractors:
    - name: pyscript1
      connectorname: PythonScript
      schemaname:
      config:
        filePath: C:\BoldServices\app_data\elt\connectors\csvreaders.py
      properties:
      metadata:
      select:

Configure the Bold Data Hub to connect PythonScript

  1. Click the Data Hub icon on the Navigation Pane.

PythonScript Bold Data Hub- Bold BI

  1. Click Add Pipeline and provide the new pipeline’s name.

PythonScript Bold Data Hub- Bold BI

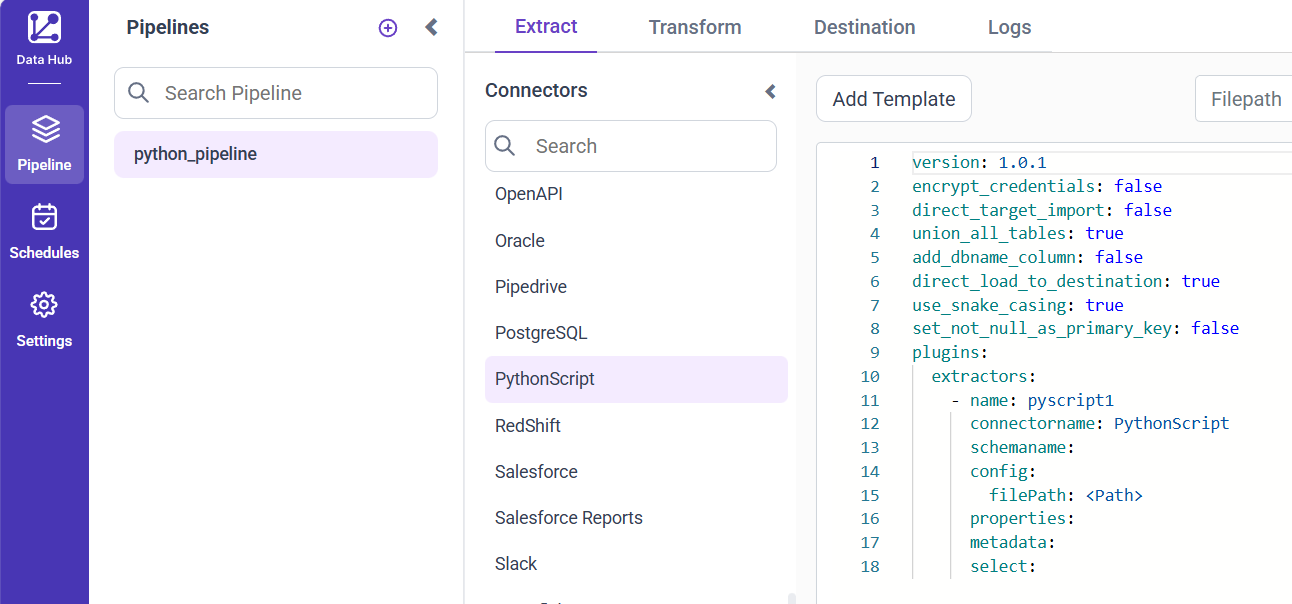

  1. Select the newly created pipeline and add the PythonScript template.

PythonScript Bold Data Hub- Bold BI

  1. In your Python Script, ensure you have a data frame object. Add the following line after the dataframe object that is moved to tables using Bold ETL.
pipeline.run(yourdataframename, table_name="yourtablename")

Replace yourdataframename with dataframe name & yourtablename with desired table name in your destination database.

  1. Click the “Upload File” button to upload your Python file.

PythonScript - Bold BI

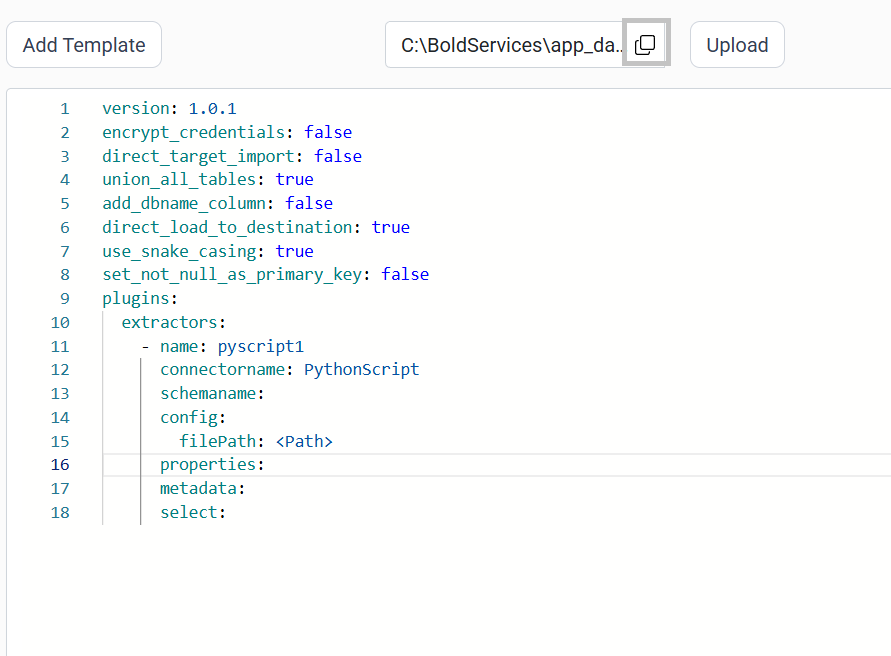

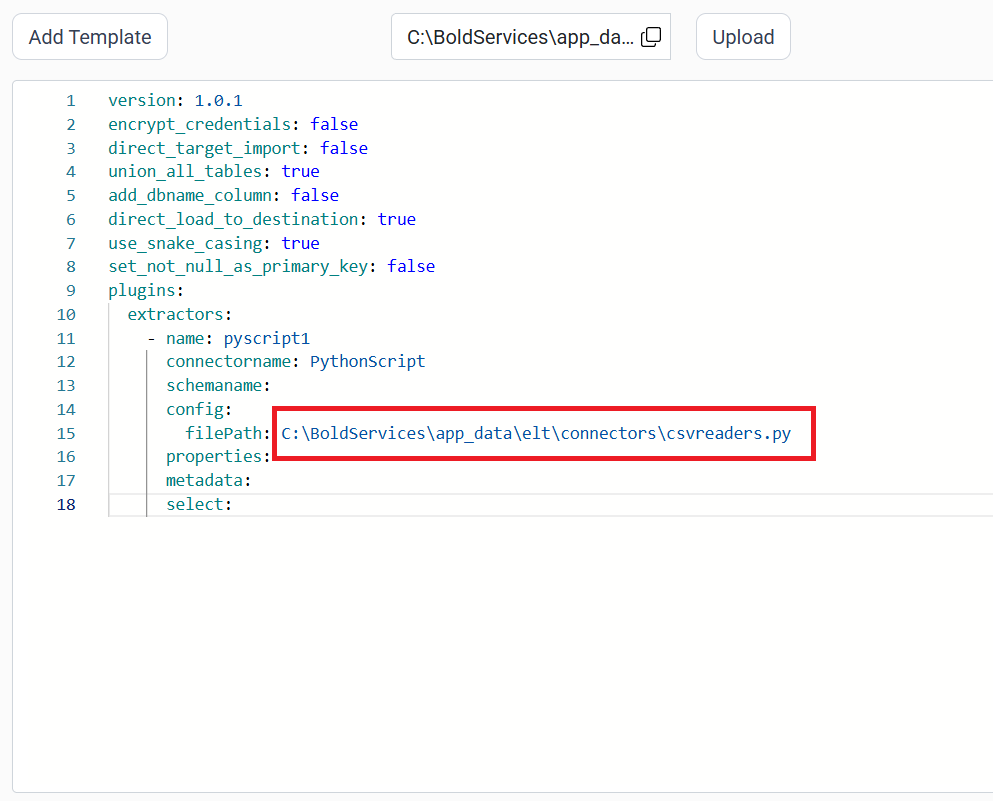

  1. Copy the filepath and replace in filePath property.

PythonScript - Bold BI

PythonScript - Bold BI

  1. Click Save and choose the desired destination to save the pipeline.

PythonScript - Bold BI

  1. Creating a Pipeline in Bold Data Hub automatically creates a Data Source in Bold BI. The Bold BI Data Source is a live data source to the destination database used in Bold Data Hub. For more information on the relationship between Bold Data Hub Pipeline and the associated Data Sources in Bold BI , please refer to Relationship between Bold Data Hub Pipeline and Associated Data Sources in Bold BI

PythonScript- Bold BI

Schedule Bold Data Hub Job

  1. To configure interval-based scheduling, click on the schedules tab and select the created pipeline and click on the schedule icon and configure it.

PythonScript - Bold BI

PythonScript - Bold BI

  1. For on-demand refresh, click Run Now button.

PythonScript - Bold BI

  1. The Schedule history can be checked using the history option as well as logs.

PythonScript - Bold BI

  1. Click on Logs to see if the run is completed and data source is created in Bold BI.

PythonScript - Bold BI

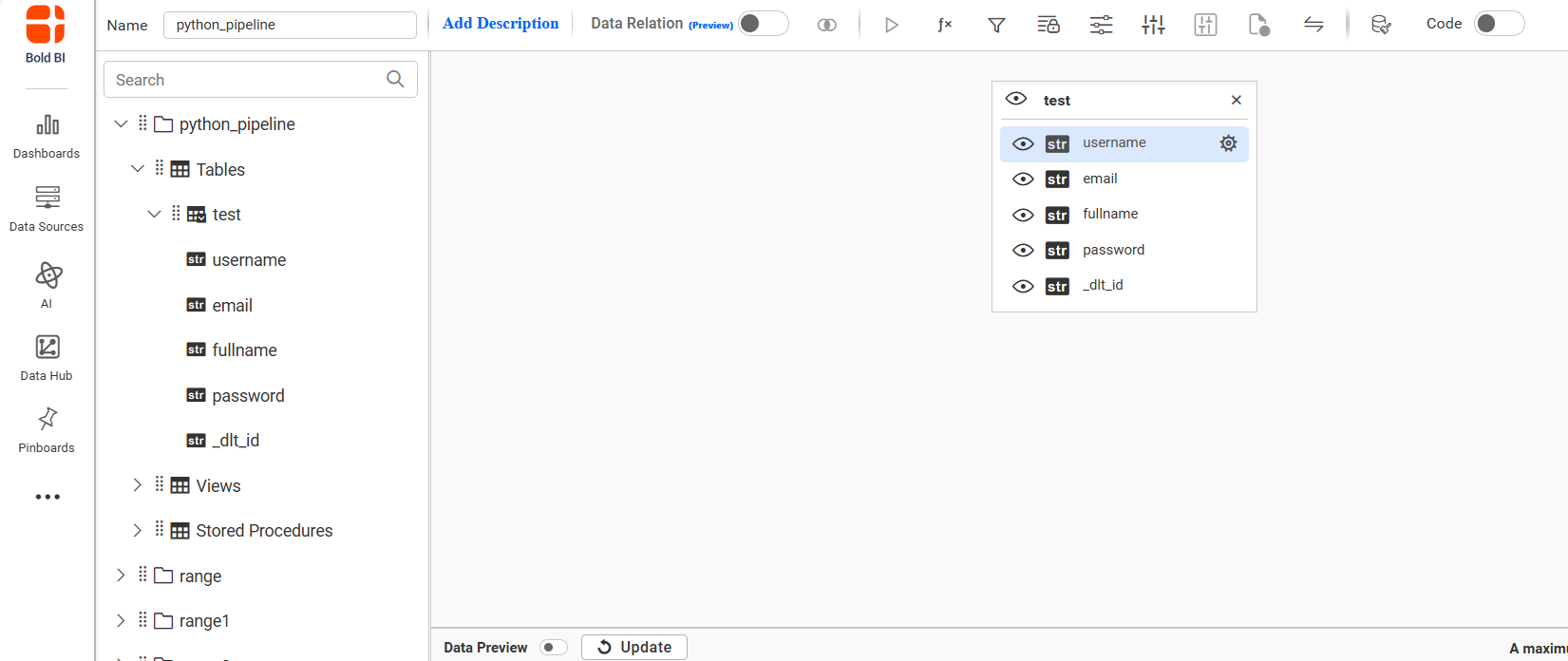

  1. Click Edit DataSource Option to view the created tables.

PythonScript - Bold BI
