Configuring Pivot Grid

The pivot grid allows you to display summarized data in a cross-tabular format, meaning it is organized in rows and columns.

pivot-grid

How to configure table data to pivot grid?

NOTE: Before adding the Pivot grid widget to the design layout, make sure to create the data source. You can refer to this section to learn how to create a new data source.

A pivot grid needs a minimum of 1 value, 1 row, and 1 column element to display proper pivot table details. The measure or expression field that you would like to analyze can be dropped into the Value(s) field. The dimension that you would like to categorize the measure based on row and column can be dropped into the Row(s) and Column(s) fields.

The following steps explain how to configure the data for a Pivot grid:

  1. Drag and drop the pivot grid widget onto a canvas and resize it to your required size.

pivot-grid_dragDrop

  1. Click the Properties icon in the Configuration panel to open the Property pane.

configurationPanel_propertyIcon

  1. In the property pane, switch to the ASSIGN DATA tab from the PROPERTIES, to assign data to the pivot grid data fields.

pivot-grid_properties

  1. The ASSIGN DATA tab will be opened with available measures and dimensions from the connected data source. It also contains the Value(s), Row(s), and Column(s) fields as mentioned earlier.

pivot-grid_assignData

Adding data to Value(s) field

You can add more than one Measure into the Value(s) field by dragging and dropping the required measures.

pivot-grid_bindValue

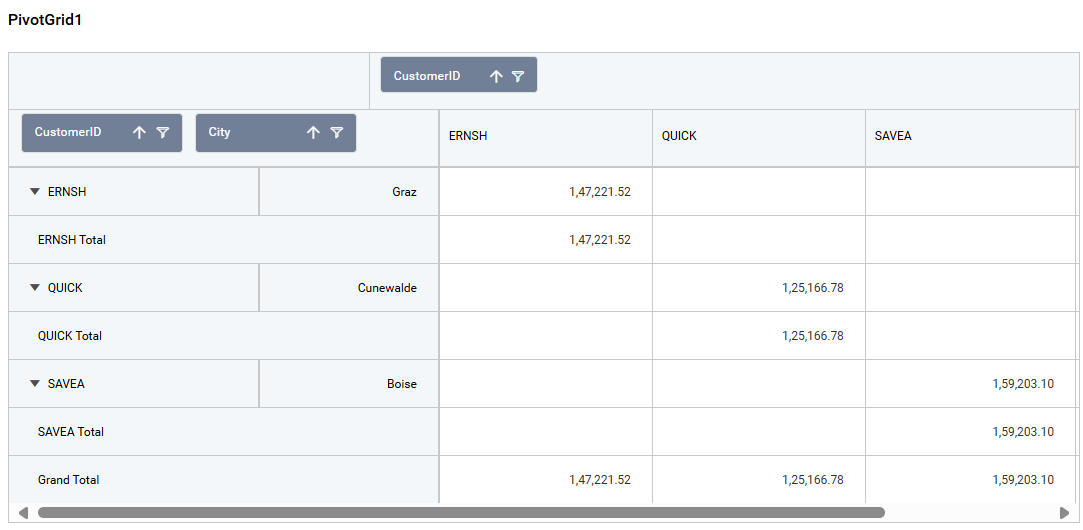

Now the pivot grid will be rendered like this for a single data.

pivot-grid_valueRender

Pivot grid will be rendered like this, if more than one data bind to Value(s)

pivot-grid_valueMultiRender

If more than one data is added to Value(s) field and then grid column is separated based on the number of data attached to Value(s) field, as shown in above image.

Click the Settings option to change the name using the Rename option and the required summary type from the available summary types shown in Settings.

pivot-grid_valueSettingIcon

Show Value As Percentage

Depending on the Summary Type, you can convert the individual values to a percentage based on the grand total using the Show Value As option.

pivot-grid_showValueAs

No Calculation

The No Calculation option is used to retrieve the actual value.

Percentage Of Grand Total

To change the Show Value As type to Percent Of Grand Total, it converts the individual value to a percentage based on the row and column grand total.

pivot-grid_grandTotalPercentage

Percentage Of Row Total

To change the Show Value As type to Percent Of Row Total, it converts the individual value to a percentage based on the row grand total.

pivot-grid_rowTotal

Percentage Of Column Total

To change the Show Value As type to Percent Of Column Total, it converts the individual value to a percentage based on the column grand total.

pivot-grid_colunTotal

NOTE: Aggregated expressions and the Average summary types are not applicable for the Show Value As option.

Filtering data

You can filter the data to be displayed in the pivot grid by using filters. For more details, refer to the filter.

pivot-grid_valueSettingFilter

Formatting data

You can format the data to be displayed in the pivot grid by using the format option. For more details, refer to the measure format

pivot-grid_valueSettingFormat

You can add more than one column from the Dimensions field into the Value(s) field.

Adding Column(s)

Adding a single data to Value(s) and Column(s)

pivot-gridsingleValuesColumn

pivot-grid-singleValuesColumn

You can change the Settings.

Settings

Renaming fields

The configured field names can be edited by using the Rename option provided in the settings menu.

Rename

Sorting data

You can sort the dimension data using the Sort option under the Settings menu list. To apply sorting for the data, refer to Sort.

Sort Settings

Filtering data

You can apply filters by selecting the filter in settings. For more details, refer to the filter.

Configuring widget filters

Similarly, you can add the Measures and Expressions into the column(s) field.

Adding Row(s)

You can drag and drop the Measure or Dimension into the Row(s) field.

pivot-grid_rowData

You can apply filter and sort options for the rows field if required.

Adding Multiple Column(s)

If more than one data is added to the Column(s) field, then the arrow icon or node is prepended to each cell of the column header. A new tree view list will be opened when the arrow icon is clicked.

Adding Multiple data to Column(s) with single Value(s) and Row(s).

pivot-grid_multipleColumn

Adding Multiple Row(s)

If more than one data is added to the Row(s) field, then the arrow icon or node is prepended to each cell of the row header. A new tree view list will be opened when the arrow icon is clicked.

Adding Multiple data to Row(s) with single Value(s) and Column(s).

pivot-grid_multipleRow

Hidden column section

You can drag and drop the elements to Hidden Columns if required. Based on the hidden column elements, the values will be shown.

Tooltip section

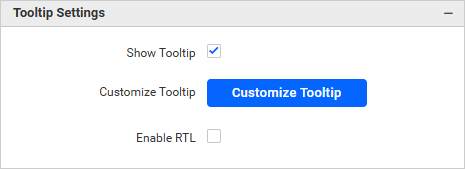

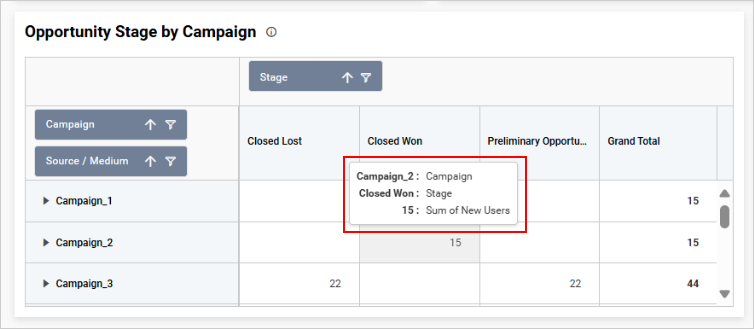

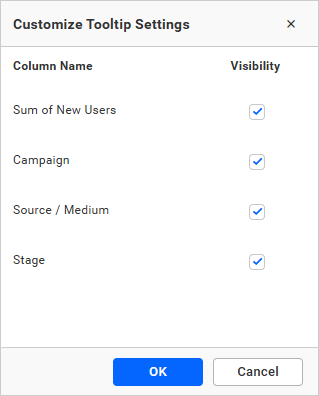

You can configure the tooltip section to showcase additional information in the widget’s tooltip without affecting the visualization. Refer to this section for more details on configuring the tooltip fields.

Removing Data from Field

To remove the added data from fields, click the highlighted cross icon.

pivot-grid_valueRemove

Important

Data Limit

  • Currently, the pivot grid has a limitation of up to 50,000 records.

How to format pivot grid?

The pivot grid can be formatted to improve the view by using the settings available in the Properties tab.

Follow the steps below to format the pivot grid:

  1. Drag and drop the pivot grid onto the canvas and resize it to the desired size.

  2. Click on the Settings icon and configure the data from the ASSIGN DATA tab as mentioned in the previous section, then switch back to the PROPERTIES tab.

The property window will be opened.

Property window

You will see a list of properties available for the widget with their default values.

General Settings

The properties in this section allow you to give a name, subtitle, and description for the pivot grid.

Pivot grid property Name

Name

This property allows you to set a title for the pivot grid widget.

Pivot grid property Name

Subtitle

This property allows you to set a subtitle for the pivot grid widget.

Pivot grid property Name

Description

This property allows you to provide a brief explanation about the pivot grid widget.

Pivot grid property Name

Basic Settings

The Basic Settings section contains general properties for the pivot grid, including value sorting, collapsing and expanding node states, saving the state of nodes, and text wrapping.

Basic Settings

Show Tooltip

This option allows you to toggle the visibility of the tooltip in the pivot grid.

Pivot grid property Name

Allow Value Sorting

If we click the column header, the value field get sorted as ascending or descending when the property Allow Value Sorting is enabled.

pivot-grid_prop-basic-sorting

Expand Nodes by Default

If this property’s checkbox is checked, the nodes will be expanded by default.

pivot-grid_prop-basic-nodes

By enabling the Expand nodes property, the Save Nodes state property will be hidden.

pivot-grid_prop-basic-nodes

Save Nodes State

This property restores the expanded and collapsed state of nodes even after reloading the dashboard.

Allow Text Wrap

By default, long texts get trimmed in pivot grid. But if the property Allow Text Wrap is enabled, then it displays a wrapped text instead of a trimmed one.

NOTE: Enabling the Allow Text Wrap property will disable the Row Height property in the content settings.

Allow Column Resize

You can resize the pivot grid by dragging the vertical lines of the pivot grid control.

Fit To Content

This property automatically adjusts the column widths in the pivot grid based on the length of the content in each column.

NOTE: Enabling this property will disable the Column Width and Header Column Width properties.

pivot-grid_prop-basic-nodes

Note: The Virtualization dynamically loads the given data when you scroll down the pivot grid. If any one of these properties (Fit to content, allow text wrap, and allow column resize) is enabled, then the virtualization is disabled. Also, we do not recommend using these properties (Fit to content, allow text wrap, and allow column resize) when dealing with a large number of records.

Show Values in Rows

This property displays the values in rows.

pivot-grid_prop-basic-nodes

Hide Empty Headers

Enabling this option allows you to hide null or empty headers in the pivot grid table.

In the following image, the column headers have (Null) values in data.

pivot-grid empty header cell

By enabling this option, the (Null) header column gets hidden.

Pivot-grid empty header cell hidden

Empty Cell Content

This option allows you to set a value for empty cells in the pivot grid.

Pivot-grid empty cell content value

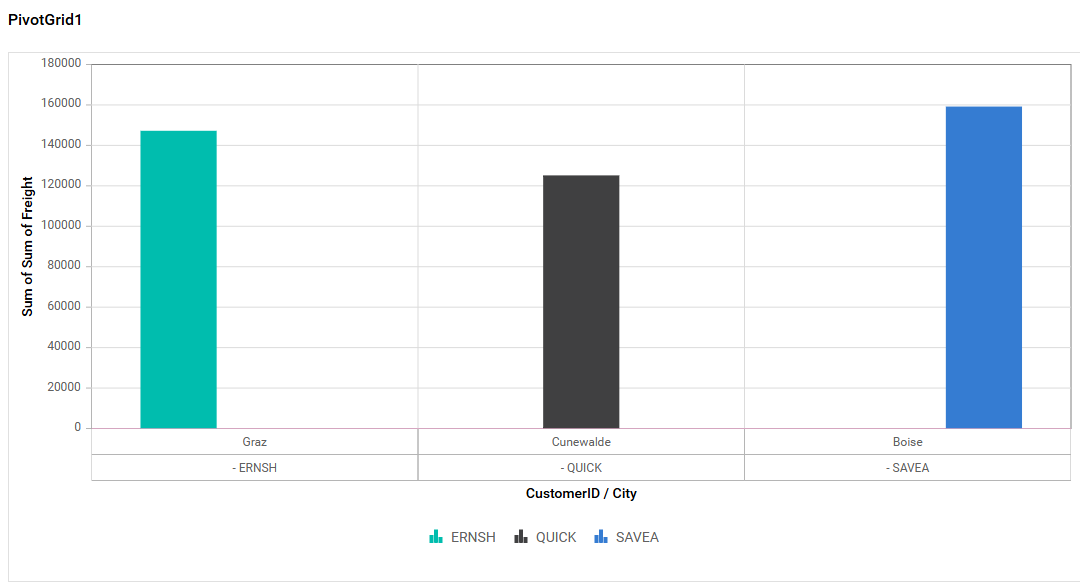

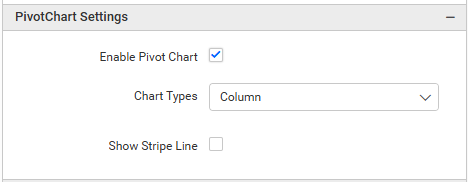

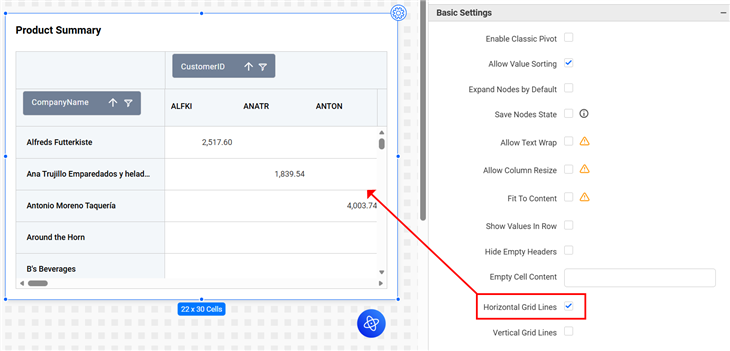

Content Settings

This section allows you to customize the height and width of the pivot grid cells.

pivot-grid-content-settings

Row Height

This option allows you to customize the height of content rows in the pivot grid.

Content Column Width

This option allows you to customize the width of the content columns.

Row Header Width

This option allows you to customize the width of the row headers (first column) in the pivot grid.

Pivot grid with default values.

Pivot content settings default

Pivot grid with customized values.

Pivot content settings default

Group Bar Settings

This section contains properties related to the group bar (row and column headers), including show or hide, sorting, and filtering properties.

pivot-grid_prop-groupBar

Show Group Bar

If this property’s checkbox is unchecked, the group bar (row and column headers) will be disabled. Checking this property will display the group bar.

pivot-grid_prop-group-show

Allow Sorting

Allow Sorting allows user to enable and disable sorting property for group bar.

pivot-grid_prop-group-sorting

Allow Filtering

Allow Filtering enables users to enable or disable the Filtering property for the group bar.

pivot-grid_prop-group-filtering

Grand Total Settings

This section contains the show and hide properties for grand and subtotals of rows and columns.

pivot-grid_prop-grandTotal

Show Row Grand Totals

This property allows users to show or hide the row’s grand total. If this property is unchecked, the row’s grand total in the image below will be disabled.

pivot-grid_prop-grand-row

Show Row Grand Totals Text

This property allows users to modify the text for row grand totals. The default text displayed for row grand totals is Grand Total. When you change the text value in the row grand totals text box, the changes will be reflected in the row grand totals, as shown in the following image.

pivot-grid_prop-grand-row-text

NOTE: The row grand totals text box is set to Auto by default, which uses the localized Grand Total text from the locale file for display. This allows us to modify the row grand totals text in multiple pivot grids simultaneously using localized text and localization.

Show Column Grand Totals

This property allows users to show or hide the column’s grand total. If this property is unchecked, the column’s grand total in the image below will be disabled.

pivot-grid_prop-grand-column

Show Column Grand Totals Text

This property allows users to modify the text for column grand totals. The default text displayed for column grand totals is Grand Total. When you change the text value in the column grand total text box, the changes will be reflected in the column grand total, as shown in the following image.

pivot-grid_prop-grand-column-text

NOTE: The column grand totals text box is set to Auto by default, which uses the localized Grand Total text from the locale file for display. This allows us to modify the column grand totals text in multiple pivot grids simultaneously using localized text and localization.

Show Row Sub Totals

This property allows users to show or hide the row’s subtotals. The image below is an example of a disabled subtotal for the row.

pivot-grid_prop-grand-subRow

Show Column Sub Totals

This property allows users to show or hide the column’s subtotals. The image below is an example of a disabled subtotal for the column.

pivot-grid_prop-grand-subColumn

Edit Field Settings

You can edit the field settings.

Edit Field Settings

Edit Field Settings

Show No Data Item

The Show No Data Item feature displays the empty data cell of the selected Name from the Edit Field Settings. For example, if the Show No Data Item for ShipCity is checked, it will display all the empty data points as empty cells, similar to the image below.

pivot-grid_prop-edit-noDataItem

In the above image, all cities except Campinas have empty data, so they are displayed as empty cells.

Alignment Settings

This option allows you to align the Column header, Row header, and Values to either the left, right, or center.

pivot-alignment-settings

Row Header - You can align the row header to the left, center, or right. The default is left.

Column Header - You can align the column header to the left, center, or right. The default is left.

Value - You can align the Value cells to the left, center, or right. The default is right.

Formatting

This section explains how to format the pivot grid cells.

Formatting properties

Group panel background color

This allows you to select the color for the group panel’s background. The default value is #e9e9e9.

Group panel background color

Header background color

This allows you to select the color for the header row’s background. The default value is #eeeeee.

Header background color

Header foreground color

This allows you to select the color for the header row’s foreground. The default value is #333333.

Header foreground color

Column representation

You can define the column value represented as simple text or condition-based formatted text. This lists the columns added to the pivot grid widget.

Columns list

Value

Select value as the display type to represent the column values as they are.

Advance setting

Select Advance setting to configure conditions and apply color to the cells based on those conditions. Click here for more details.

Advanced settings  widget

Pivot Grid as Heatmap

Using conditional formatting, you can customize the pivot grid as a heatmap.

pivot grid As Heatmap

How to configure pivot grid as a heatmap

  1. In the properties panel, under the Formatting section, select the field name configured in the value, then click the Advanced Setting radio button.

Enable Advanced Settings

  1. Click the Customize button to open the Advanced Setting.

Advanced settings applied widget

  1. Customize the colors according to your needs and click the Save button.

Advanced Settings

Pivot Grid Datetime Hierarchy Fields

You can achieve this by applying date formatting to the configured fields.

Pivot Grid Datetime hierarchy

How to do pivot grid datetime hierarchy

  1. configure the date fields as follows,

Assign Data Section

  1. Click the settings menu icon and select the date format based on the hierarchy.

Assign Data settings menu

  1. Repeat the same steps for the remaining fields.

Font settings

This section allows you to customize the height and width of the pivot grid content.

Font settings

Pivot grid with auto font-size.

Auto font size

Auto Font Size and Font Size

By default, the auto font size property is enabled, so the font size of the headers will be rendered based on the resolution. If this property is unchecked, the font size of the header can be customized.

Header Font settings

Content

Auto Font Size and Font Size

By default, the auto font size property is enabled, so the font size of the pivot grid content elements will be calculated based on the resolution. If this property is unchecked, the font size can be customized.

Content Font settings

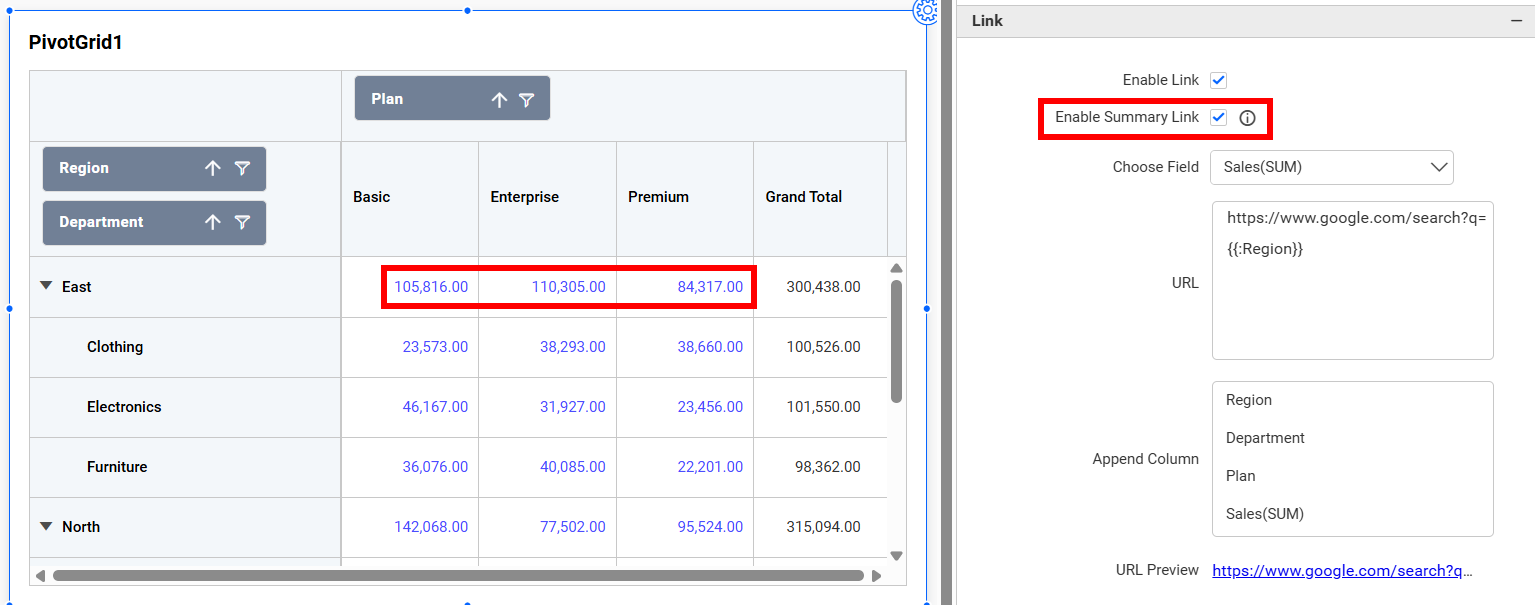

To configure the linking to a URL or dashboard with the widget through its settings, refer to Linking for more details.

pivot-grid_prop-link

Filter

Filter allows you to apply filtering based on data field.

Filter

Act as Master Widget

This allows you to define this pivot grid widget as a master widget, so its filter action can be listened to by other widgets in the dashboard.

Ignore Filter Actions

This allows you to define this pivot grid widget to ignore responding to the filter actions applied on other widgets in the dashboard.

Hierarchical Filter

Through this option, you can enable/disable hierarchical top N filtering. While applying Top N filter with multiple dimension columns, the data returned can be customized based on whether the filtering needs to be done as flat or based on the hierarchy of dimension columns added.

When the Hierarchical Filter option is enabled, the Top N will be applied to each individual column separately based on the number set for each column.

How to apply conditional formatting in pivot grid

If you have the requirement to highlight data based on certain conditions, you can enable the advanced formatting option.

How to enable advanced formatting

  1. In the properties pane, under the Formatting section, click the Advanced Setting radio button.

Enable advance settings

  1. This will open the Conditional Formatting dialog.

Conditional formatting window

  1. Select the mode and enter the conditions as required, then click the Save button to apply.

  2. Now, the widget visualization will be updated based on the conditions.

Widget after applying  conditions

Refer to the following sections for detailed steps on using the Gradient and Rule modes.

Gradient mode

You can customize the background color of the pivot grid cells using the gradient-based conditional formatting. This is the default mode.

Based on field

The configured value fields. The “Based on Field” option cannot be changed in the conditional formatting dialog.

Summary type

The summary type of the configured value field.

Low, mid, and high values

You can define your range by entering the low, mid, and high values.

NOTE: This is optional, if no value is entered, the ranges will be auto-calculated based on the minimum and maximum values from the data source.

Rule based condition mode

This allows you to customize the cell colors and value font style of the pivot grid cells based on one or more numerical/text conditions.

Rule mode

Condition name

You can assign a meaningful name to the applied conditions.

Condition type

Choose the condition for the measure field from the highlighted conditions.

Condition type

Value

You can specify the condition value.

Foreground

This option allows you to define the foreground color of the pivot grid cell for this condition.

Background

Allows you to define the pivot grid cell background for this condition.

Font style

This option allows you to choose the font style for the title (Bold, Italic, Underline, and Superscript).

Add condition

Click on Add Condition to specify a new condition.

Add condition

Delete condition

Click on the delete button to remove the existing condition.

Delete condition

Container appearance

Container Appearance

Title alignment

This option allows you to align the widget title to the left, center, or right.

Title color

This option allows you to apply a specific text color to the widget title.

Title Auto Font Size

When enabled, the font size of the title will automatically adjust if the screen resolution varies.

Font Size

This option allows you to apply a specific font size to the widget title if the Title Auto Font Size is disabled. The value can range between 10 and 44.

Subtitle Auto Font Size

When enabled, the font size of the subtitle will automatically adjust if the screen resolution varies.

Font Size

This option allows you to apply a specific font size to the widget subtitle if the Subtitle Auto Font Size is disabled. The value can range between 10 and 32.

Auto Padding

When enabled, the padding of the widget container will automatically adjust if the size of the widget varies.

Padding

This option allows you to customize the padding of the widget container if the Auto Padding is disabled. The value can be between 0 and 25.

Show Border

This option allows you to toggle the visibility of the border surrounding the widget.

Corner Radius

This option allows you to apply a specific radius to the widget corners if the Show Border is enabled. The value can range between 0 and 10.

Transparency

You can adjust the transparency from 0 to 1.

Show Shadow

This option allows you to toggle the visibility of the shadow surrounding the widget.

Container actions

Container Actions

Show header

This option allows you to enable or disable the widget title of the pivot grid.

Allow maximize view

This option allows you to enable or disable the maximized mode of the pivot grid. The visibility of the maximize icon in the widget header will be determined based on the setting in the viewer.

Allow CSV export

This allows you to enable or disable the CSV export option for the pivot grid. Enabling this allows you to export the summarized data of the widget view to CSV format in the viewer.

Allow Excel export

This allows you to enable or disable the Excel export option for the pivot grid. Enabling this allows you to export the summarized data of the widget view to (.xlsx or .xls) format in the viewer.

Allow image export

This allows you to enable or disable the image export option for the pivot grid. Enabling this allows you to export the view of the widget to image format (.jpg), (.png), or (.bmp) in the viewer.

Allow PDF export

This allows you to enable or disable the PDF export option for the pivot grid. Enabling this allows you to export the view of the widget to pdf format in the viewer.

Enable comments

This allows you to enable or disable comment for the dashboard widget. For more details, refer to this refer to the following link: Dashboard Widget Comments.

Allow Viewing of underlying data

This allows you to visualize the raw data associated with a widget at runtime.

Pin widget

This option allows you to pin the widget.

Blog Post – 7 Unique Features of Pivot Table

Contents
Contents
